SNC25-P1-N
Product number:
1000754
Manufacturer:
NBS
Weight:
0.54 kg
Product information "SNC25-P1-N"

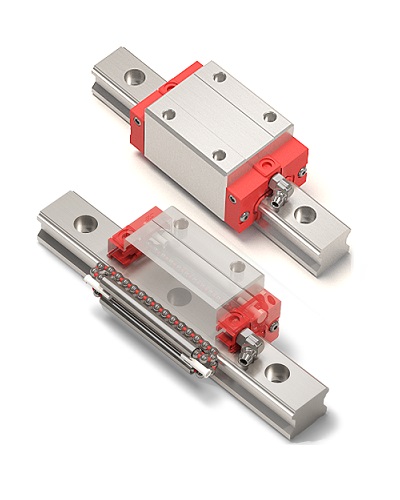

Runner block, Recirculating ball bearing and guideway assemblies, compact block design, NBS
(interchangeable with BRH25-B)
| Design: | block |
|---|---|
| Size: | 25 |
| Width: | 48 |
| Height: | 33 |
| Height on rail: | 40 |
| Lenght: | 88 |
| Preload: | light preload |
| Precision class: | standard |
| Sealing: | standard |
| Material: | standard |
| Cage: | cageless, full complement |
Alternative articles to "SNC25-P1-N"*
| BRH25B |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
