Heavy-Duty Spherical-Plain Bearings with Integral Self-Aligning Roller Bearing
Heavy-Duty Spherical-Plain Bearings
Spherical-plain bearings with self-aligning roller bearings are used at very high loads. They are ideally suited for high speeds and large swivel angles or rotating movements.
This bearings, which contain long-term food grease, require little maintenance.
Coarse dirt particles do not penetrate inside the bearing as these are saved with shields on both sides.
Special heat treatment of the spherical plain bearings ensures a raceway hardness corresponding to the rolling bearings and equally high stability with changing loads.
Heavy-Duty Spherical-Plain Bearings manufactured by Durbal - Highlights
- Spherical plain bearing with tilt angle
- Radial bearing clearance: 10-30 qm, low bearing friction
- Outer and inner ring made of roller bearing steel, hardened, runway superfinished
- Shields on both sides for sealing against coarse dirt
- Low maintenance due to long-term greasing with food approval
- Available with a cage or in full-complement design
- Made in Germany
WLT10-00-500
Inner diameter:
10
|
Outer diameter:
28
|
Width:
14
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
hard fabric, plastic cage

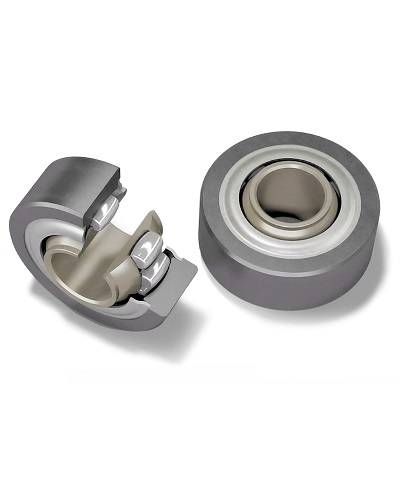

Heavy-duty spherical bearing with integral self-aligning roller bearing, cage design, Durbal
Price on request
Sold out
WLT10-30-500
Inner diameter:
10
|
Outer diameter:
28
|
Width:
14
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing, full complement design, Durbal
Price on request
Sold out
WLT10-60-500
Inner diameter:
10
|
Outer diameter:
28
|
Width:
14
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, cage design, Durbal
Price on request
Sold out
WLT10-90-500
Inner diameter:
10
|
Outer diameter:
28
|
Width:
14
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
WLT12-00-500
Inner diameter:
12
|
Outer diameter:
32
|
Width:
16
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing, cage design, Durbal
Price on request
WLT12-30-500
Inner diameter:
12
|
Outer diameter:
32
|
Width:
16
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing, full complement design, Durbal
Price on request
Sold out
WLT12-60-500
Inner diameter:
12
|
Outer diameter:
32
|
Width:
16
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, cage design, Durbal
Price on request
Sold out
WLT12-90-500
Inner diameter:
12
|
Outer diameter:
32
|
Width:
16
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
WLT16-00-500
Inner diameter:
16
|
Outer diameter:
42
|
Width:
21
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing, cage design, Durbal
Price on request
WLT16-30-500
Inner diameter:
16
|
Outer diameter:
42
|
Width:
21
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT16-60-500
Inner diameter:
16
|
Outer diameter:
42
|
Width:
21
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, cage design, Durbal
Price on request
Sold out
WLT16-90-500
Inner diameter:
16
|
Outer diameter:
42
|
Width:
21
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT18-30-500
Inner diameter:
18
|
Outer diameter:
46
|
Width:
23
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT18-90-500
Inner diameter:
18
|
Outer diameter:
46
|
Width:
23
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
WLT20-00-500
Inner diameter:
20
|
Outer diameter:
50
|
Width:
25
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing, cage design, Durbal
Price on request
WLT20-30-500
Inner diameter:
20
|
Outer diameter:
50
|
Width:
25
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT20-60-500
Inner diameter:
20
|
Outer diameter:
50
|
Width:
25
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, cage design, Durbal
Price on request
Sold out
WLT20-90-500
Inner diameter:
20
|
Outer diameter:
50
|
Width:
25
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT22-30-500
Inner diameter:
22
|
Outer diameter:
54
|
Width:
28
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT22-90-500
Inner diameter:
22
|
Outer diameter:
54
|
Width:
28
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
WLT25-00-500
Inner diameter:
25
|
Outer diameter:
64
|
Width:
31
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing, cage design, Durbal
Price on request
WLT25-30-500
Inner diameter:
25
|
Outer diameter:
64
|
Width:
31
|
Sealing:
steel shields on both sides
|
Material:
standard
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
Sold out
WLT25-60-500
Inner diameter:
25
|
Outer diameter:
64
|
Width:
31
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
hard fabric, plastic cage
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, cage design, Durbal
Price on request
Sold out
WLT25-90-500
Inner diameter:
25
|
Outer diameter:
64
|
Width:
31
|
Sealing:
steel shields on both sides
|
Material:
Korrosionsbeständig
|
Cage:
cageless, full complement
Heavy-duty spherical bearing with integral self-aligning roller bearing in stainless steel, full complement design, Durbal
Price on request
