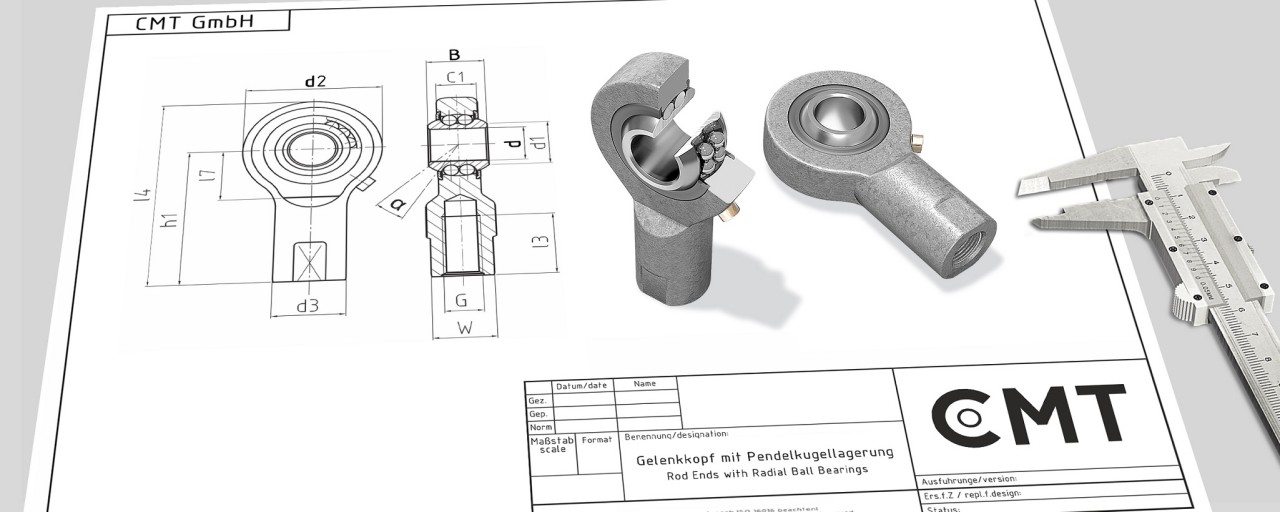

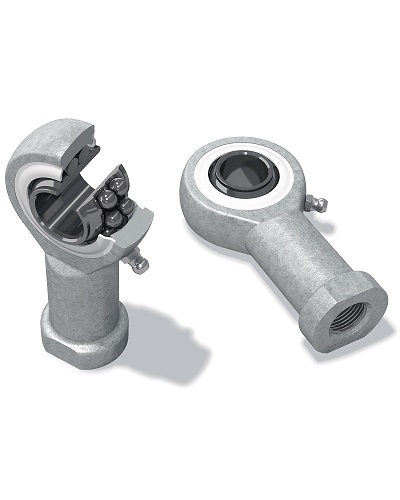

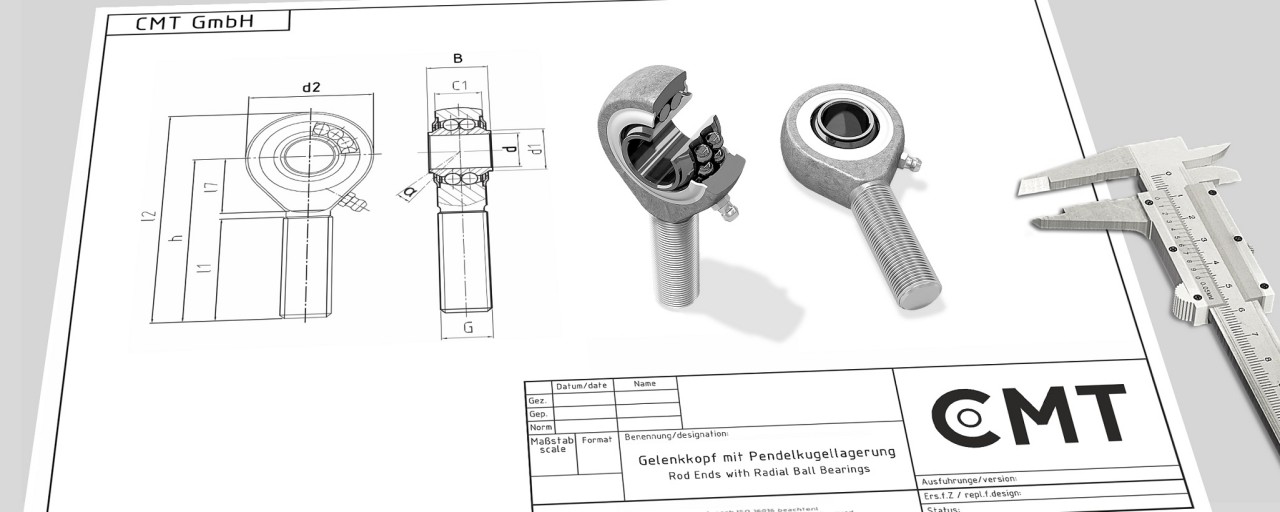

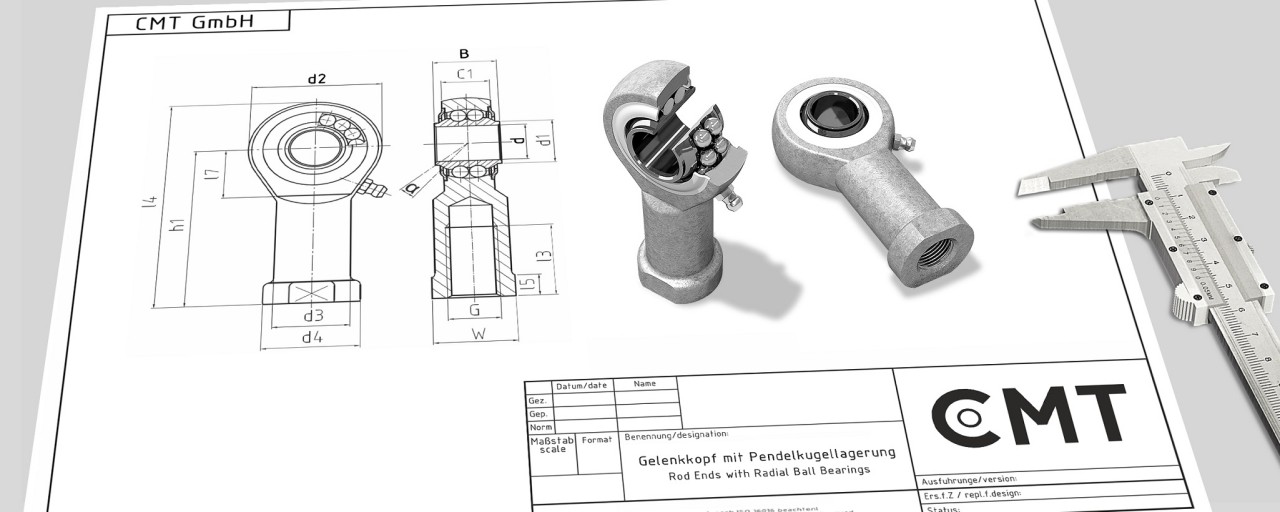

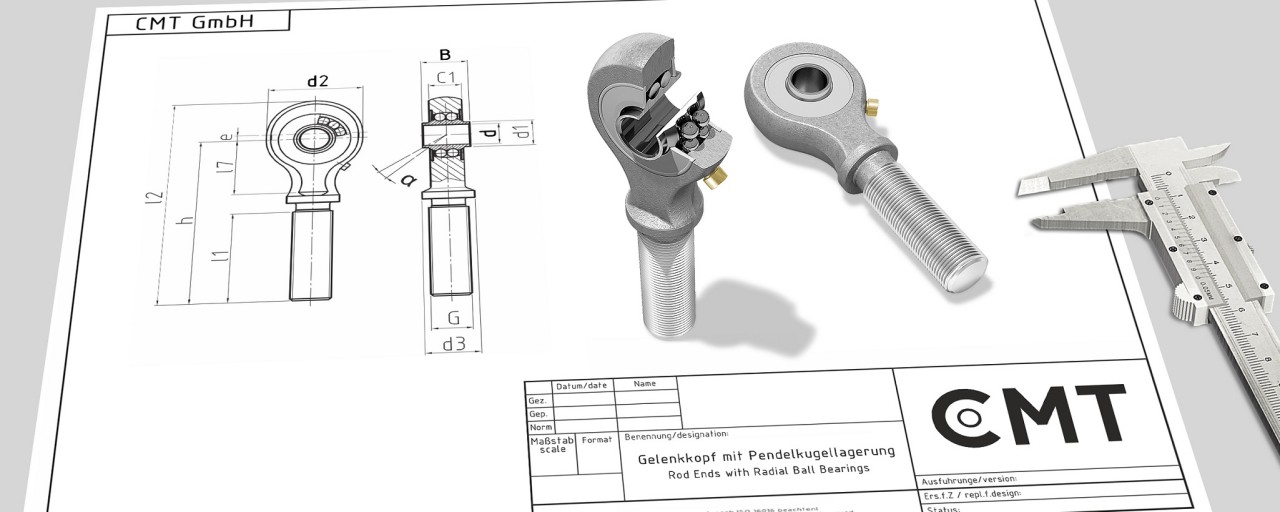

Rod Ends with Integral Self-Aligning Ball Bearing
Rod Ends
A rod end with integral self-aligning ball bearing is used at high speeds and relatively low to medium loads.
Low bearing friction, large swivel angles or rotating movements, long-term grease with food approval and sealing shields on both sides against coarse dirt are technical features to be emphasized.
Under normal working conditions, the rod ends with long-life grease are maintenance-free, but can be relubricated if necessary using existing grease nipples.
Special heat treatment processes ensure that the raceway hardness corresponds to the rolling bearings and at the same time high stability with changing loads.
Heavy-Duty Rod Ends manufactured by Durbal - Highlights
- Radial bearing clearance: 10-30 qm, low bearing friction
- Inner ring made of roller bearing steel, hardened, runway superfinished
- Shields on both sides for sealing against coarse dirt
- All rod end housings made of forged case-hardened steel, tempered
- Low maintenance due to long-term lubrication, particularly suitable for high speeds, large swivel angles or rotating movements
- Available in stainless steel
- Inch dimensions available
- Connection dimensions according to DIN 12240-4 and DIN-ISO 8139 for pneumatic cylinders
- Hi-Tech Production - Manual Finishing
- Made in Germany
