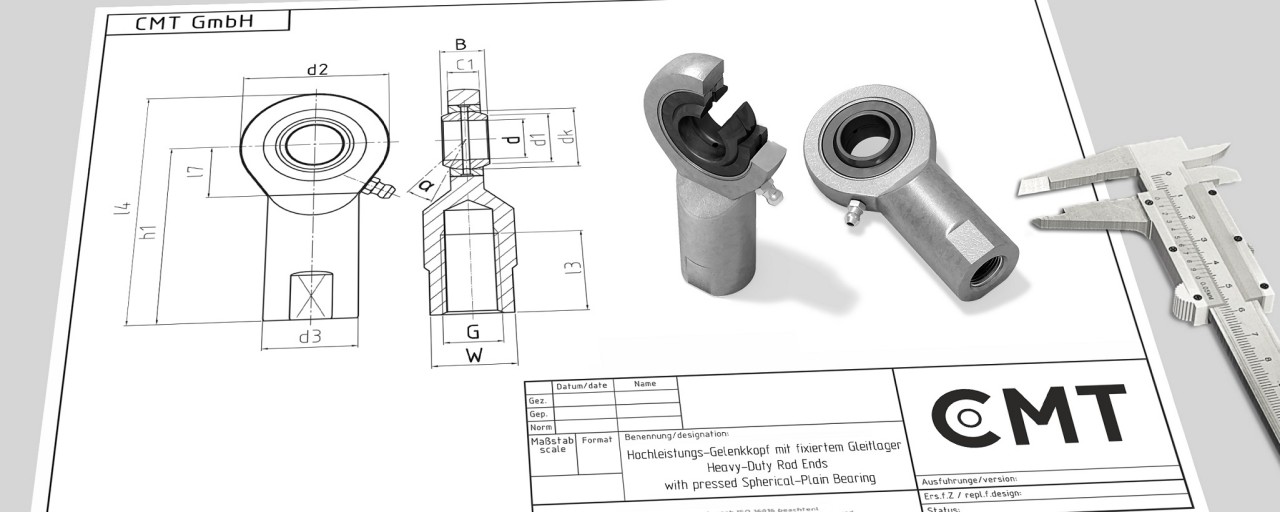

Rod Ends with Pressed Spherical Plain Bearing

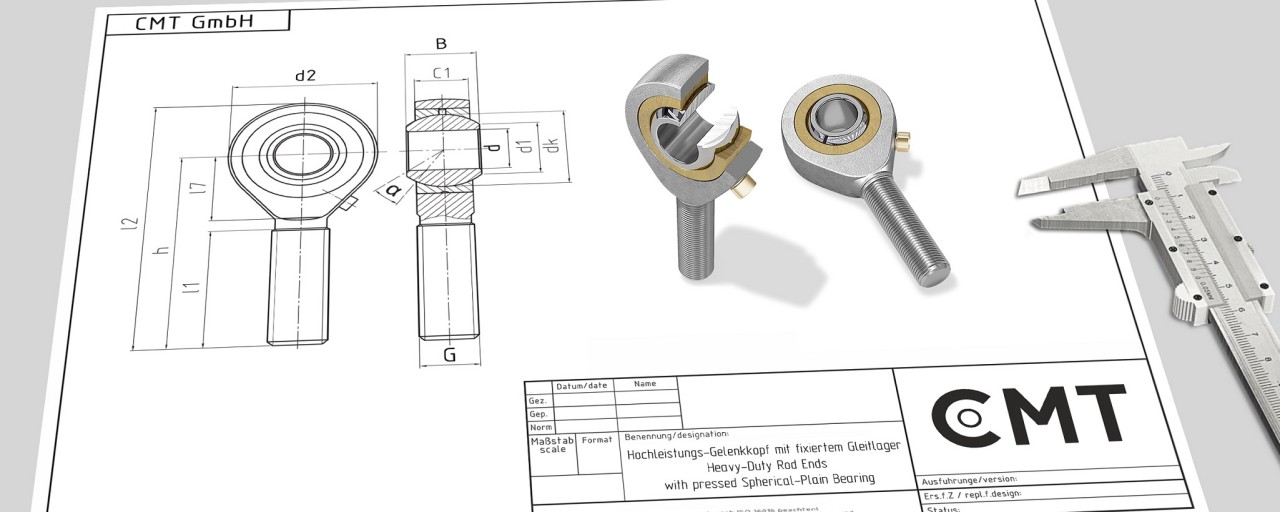

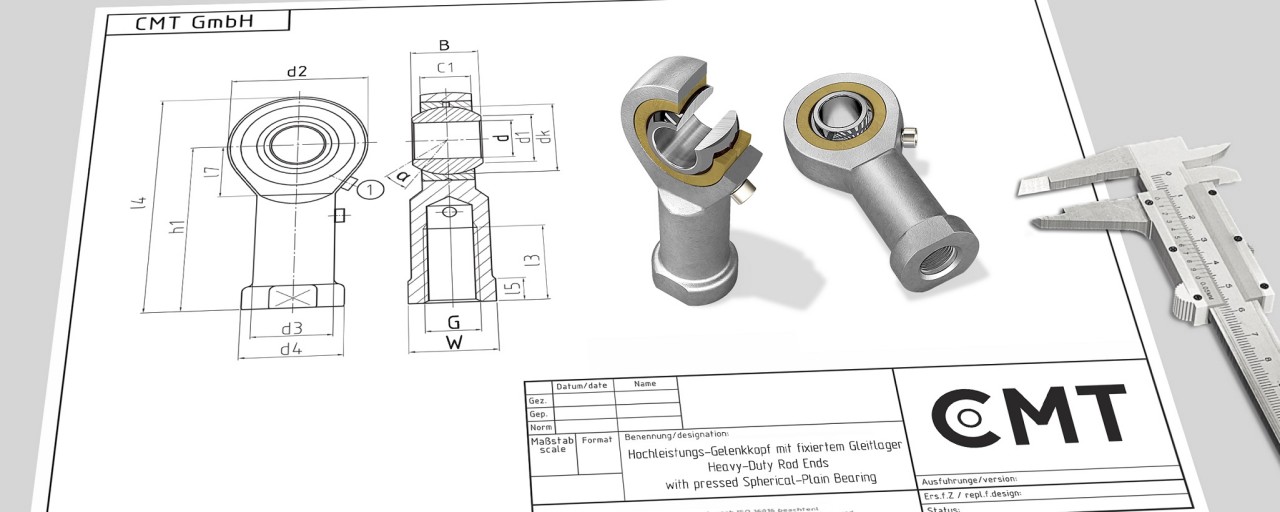

Heavy-Duty Rod Ends

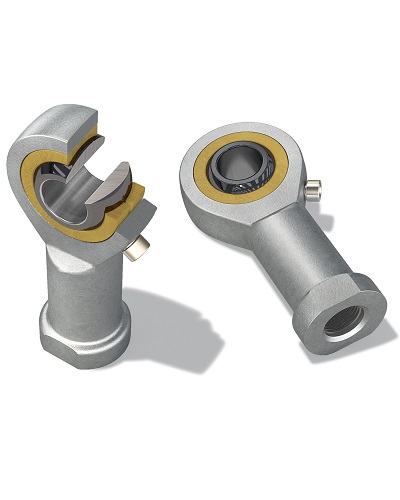

A rod end with a pressed spherical plain bearing is primarily used for alternating or shock-like loads and large swiveling movements.
The hard chrome-plated ball offers effective corrosion protection. Even in damp ambient conditions, the function of the joint head is not impaired by rust spots on the surface of the ball.
The rod ends can be relubricated using a funnel-type lubrication nipple or a special lubrication nipple according to customer requirements.
Heavy-Duty Rod Ends manufactured by Durbal - Highlights
- All rod end housings made of forged case-hardened steel, tempered, for extremely high load capacity
- Connection dimensions according to DIN ISO 12240-4 and DIN ISO 8139 for pneumatic cylinders
- Available in stainless steel
- Inch dimensions available
- Made in Germany

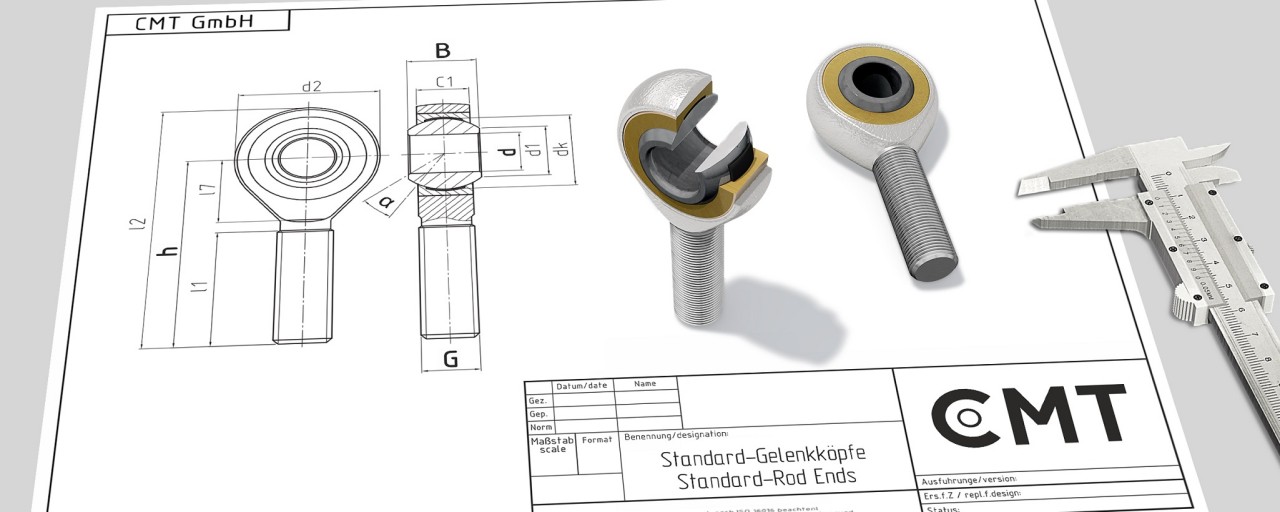

Durbal Standard-Rod Ends with Pressed Spherical-Plain Bearing
A standard rod end with pressed spherical-plain bearing is a standardized, ready-to-install machine element that is used to transmit static and dynamic forces in connection with swiveling, tilting and rotating movements. The extensive range includes the following pairings:
- Steel / steel
- Steel / bearing brass
- Steel / bearing brass-PTFE composite material
