Linear Systems Units

Linear Rolling Guidance System

Linear units are combined from different versions of ball bushings and matching housings.

The units run on precision shafts, which are either clamped in trestles or trusses or placed on shaft supports with or without a flange.

Sold out
KFB12-B-PP-AS
KFB12-B-PP-AS
Inner diameter: 12 | Width: 40 | Height: 40 | Lenght: 32 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€71.87*
Details
KFB16-B-PP-AS
KFB16-B-PP-AS
Inner diameter: 16 | Width: 50 | Height: 50 | Lenght: 36 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€82.87*
Sold out
KFB20-B-PP-AS
KFB20-B-PP-AS
Inner diameter: 20 | Width: 60 | Height: 60 | Lenght: 45 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€91.41*
Details
Sold out
KFB25-B-PP-AS
KFB25-B-PP-AS
Inner diameter: 25 | Width: 70 | Height: 70 | Lenght: 58 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€104.05*
Details
KFB30-B-PP-AS
KFB30-B-PP-AS
Inner diameter: 30 | Width: 80 | Height: 80 | Lenght: 68 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€122.63*
Sold out
KFB40-B-PP-AS
KFB40-B-PP-AS
Inner diameter: 40 | Width: 100 | Height: 100 | Lenght: 80 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€158.68*
Details
Sold out

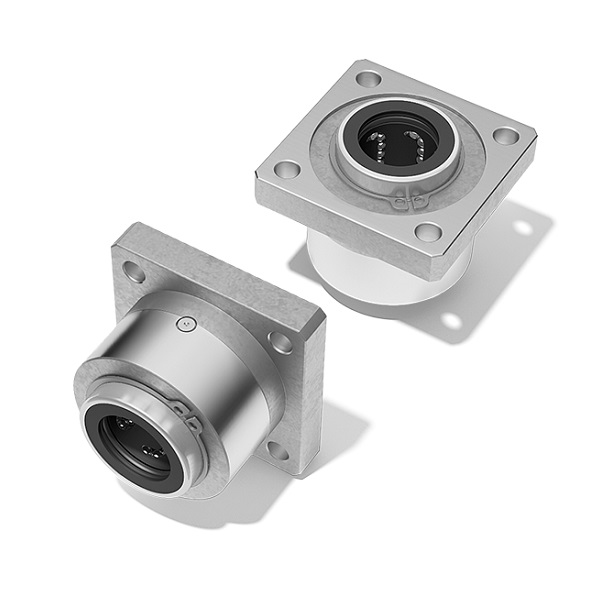

KFB50-B-PP-AS
KFB50-B-PP-AS
Inner diameter: 50 | Width: 130 | Height: 130 | Lenght: 100 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KFB.., machined range, housing with flange made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€201.79*
Details
KGB12-PP-AS
KGB12-PP-AS
Inner diameter: 12 | Width: 52 | Height: 35,8 | Lenght: 32 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€42.14*
KGB16-PP-AS
KGB16-PP-AS
Inner diameter: 16 | Width: 56 | Height: 37,5 | Lenght: 36 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€43.26*

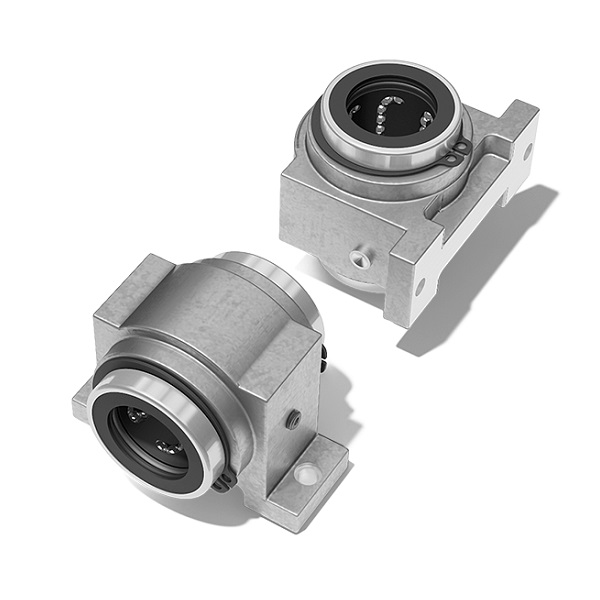

KGB20-PP-AS
KGB20-PP-AS
Inner diameter: 20 | Width: 70 | Height: 47,5 | Lenght: 45 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€46.45*
KGB25-PP-AS
KGB25-PP-AS
Inner diameter: 25 | Width: 80 | Height: 57,5 | Lenght: 58 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€57.46*
KGB30-PP-AS
KGB30-PP-AS
Inner diameter: 30 | Width: 88 | Height: 66,5 | Lenght: 68 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€67.12*
KGB40-PP-AS
KGB40-PP-AS
Inner diameter: 40 | Width: 108 | Height: 83,5 | Lenght: 80 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€89.19*
KGB50-PP-AS
KGB50-PP-AS
Inner diameter: 50 | Width: 135 | Height: 98 | Lenght: 100 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGB.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€131.92*
Sold out
KGBA12-PP-AS
KGBA12-PP-AS
Inner diameter: 12 | Width: 42 | Height: 34 | Lenght: 32 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€49.86*
Details
Sold out
KGBA16-PP-AS
KGBA16-PP-AS
Inner diameter: 16 | Width: 50 | Height: 41 | Lenght: 36 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€53.43*
Details
KGBA20-PP-AS
KGBA20-PP-AS
Inner diameter: 20 | Width: 60 | Height: 45 | Lenght: 47,5 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€61.24*
KGBA25-PP-AS
KGBA25-PP-AS
Inner diameter: 25 | Width: 74 | Height: 60 | Lenght: 58 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€85.48*
KGBA30-PP-AS
KGBA30-PP-AS
Inner diameter: 30 | Width: 84 | Height: 67 | Lenght: 68 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€86.58*
KGBA40-PP-AS
KGBA40-PP-AS
Inner diameter: 40 | Width: 108 | Height: 87 | Lenght: 80 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€117.07*

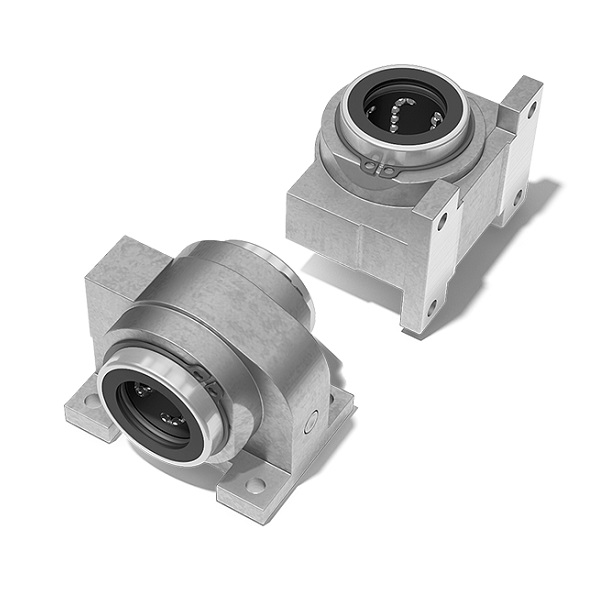

KGBA50-PP-AS
KGBA50-PP-AS
Inner diameter: 50 | Width: 130 | Height: 98 | Lenght: 100 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBA.., machined range, closed design, housing made of high-strength aluminium with integral single linear ball bearing KB.., greased, sealed on both sides, relubricatable, INA

€155.71*
KGBAO12-PP-AS
KGBAO12-PP-AS
Inner diameter: 12 | Width: 42 | Height: 30,5 | Lenght: 32 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBAO.., machined range, housing made of high-strength aluminium with segment cutout and integral single linear ball bearing KBO.., greased, sealed on both sides, relubricatable, INA

€68.09*
KGBAO16-PP-AS
KGBAO16-PP-AS
Inner diameter: 16 | Width: 50 | Height: 37 | Lenght: 36 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBAO.., machined range, housing made of high-strength aluminium with segment cutout and integral single linear ball bearing KBO.., greased, sealed on both sides, relubricatable, INA

€70.76*

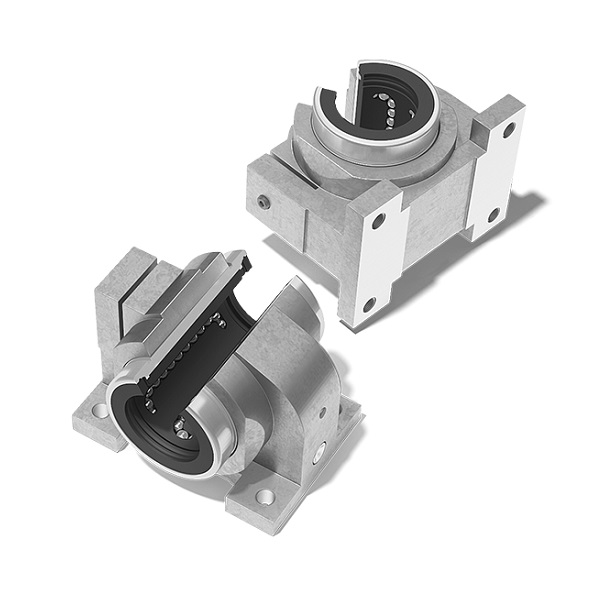

KGBAO20-PP-AS
KGBAO20-PP-AS
Inner diameter: 20 | Width: 60 | Height: 44,5 | Lenght: 45 | Sealing: sealed on both sides | Material: aluminium
Linear ball bearing and housing unit KGBAO.., machined range, housing made of high-strength aluminium with segment cutout and integral single linear ball bearing KBO.., greased, sealed on both sides, relubricatable, INA

€76.55*
