Drive Belts, Conveyor Belts

Drive, Material Handling

Wide range of belts is used for drive and material handling.

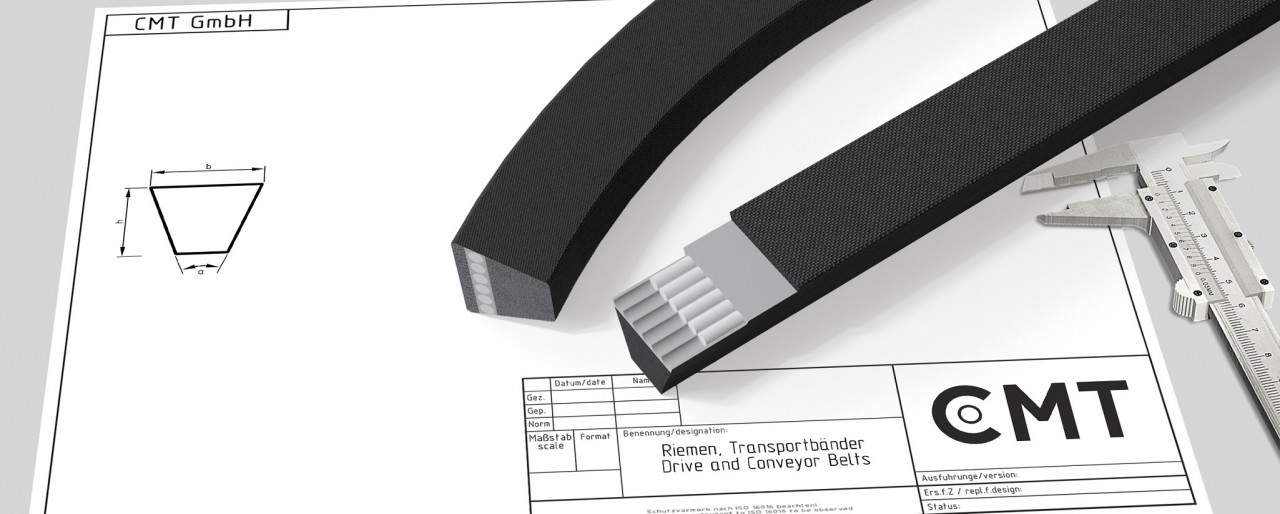

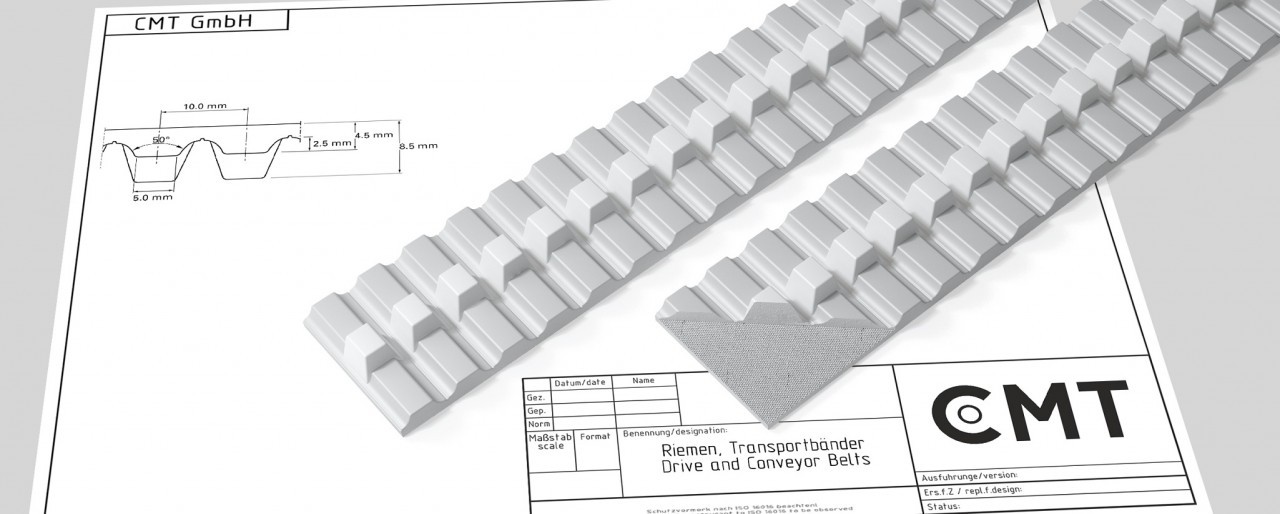

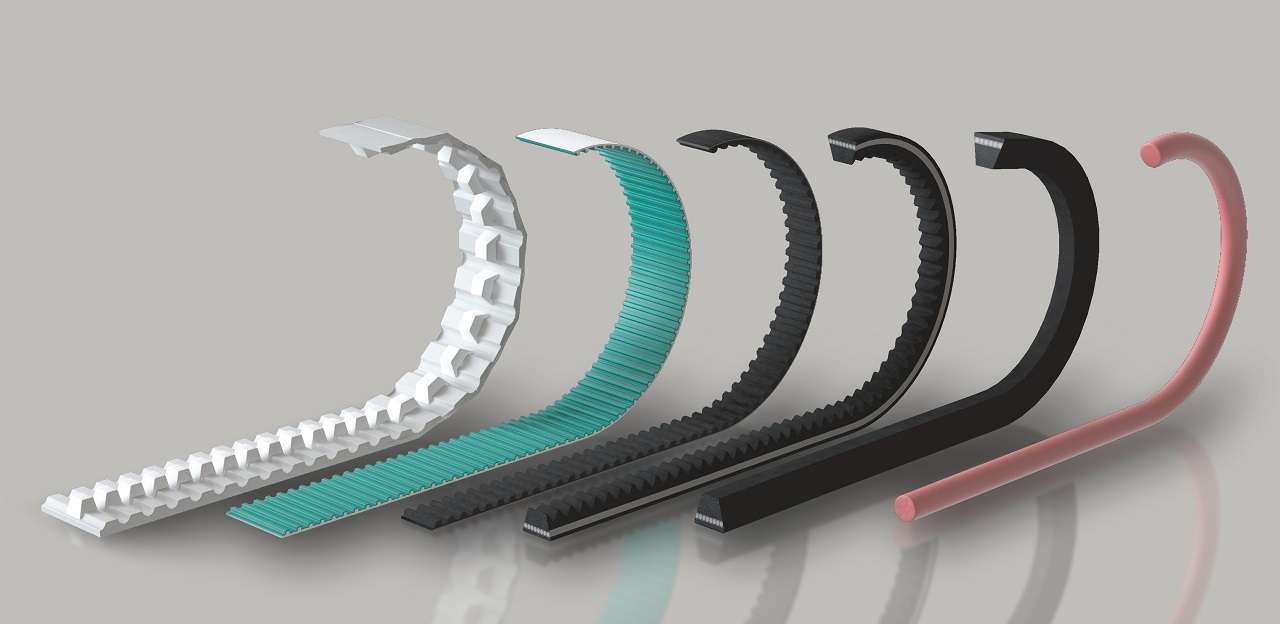

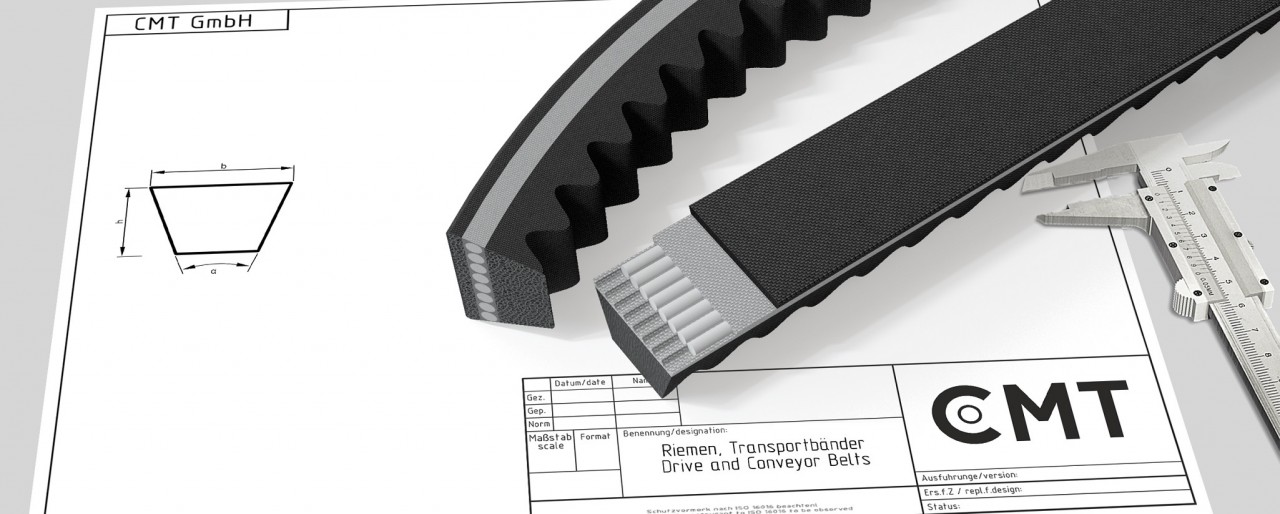

Depending on the requirements, different types of V-belts or toothed belts are used for power transmission, which are divided into numerous variants according to profile type and material. Modified transport and conveyor belts can be manufactured on the basis of V-belts and timing belts. To achieve entrainment properties, various standard or special coatings, foam, cams, etc. are used.

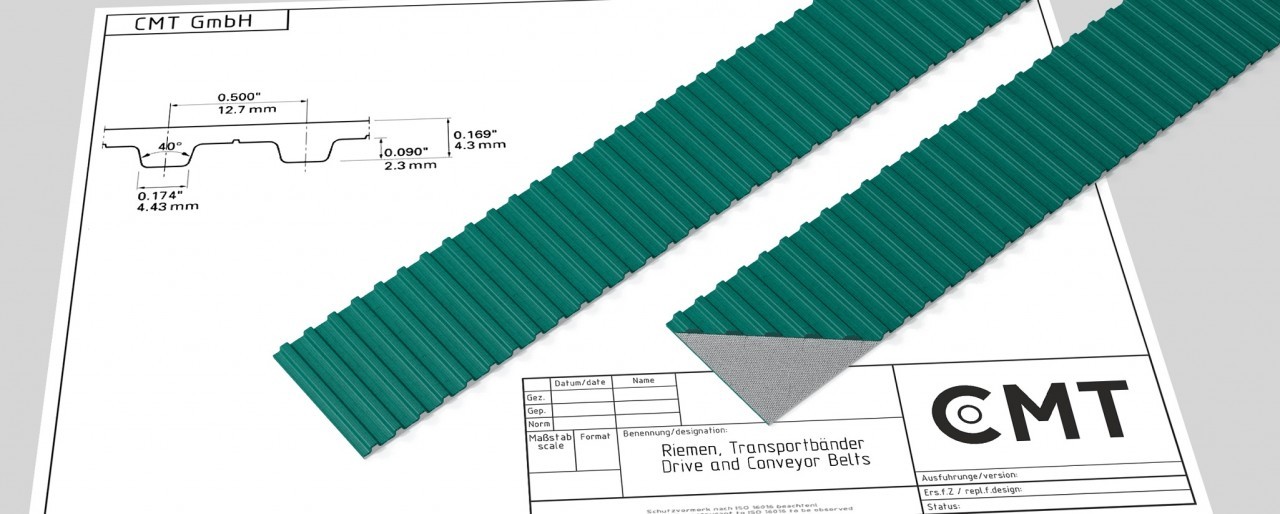

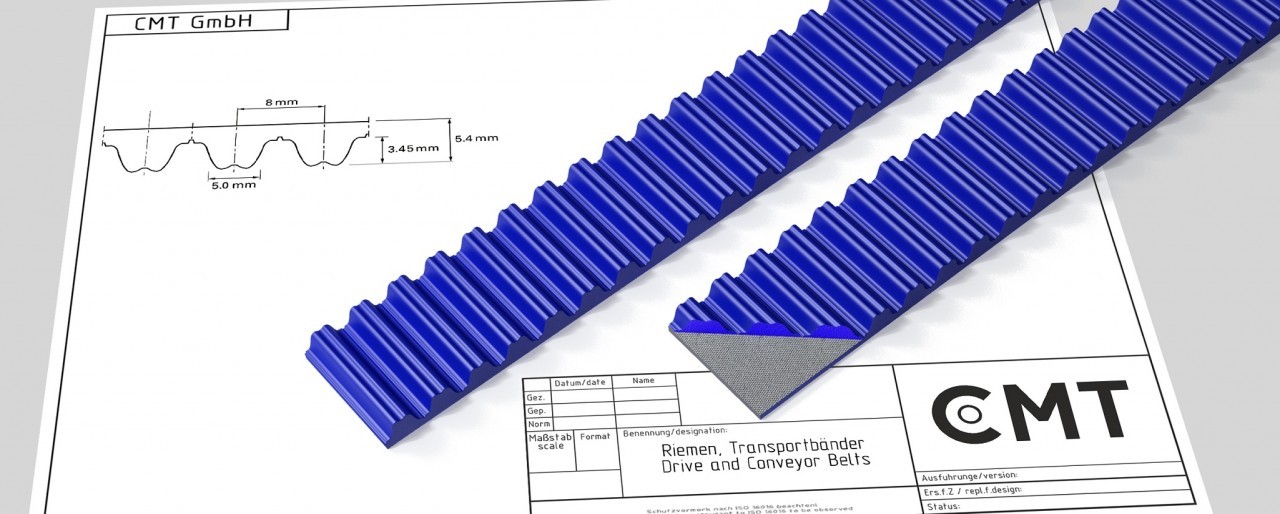

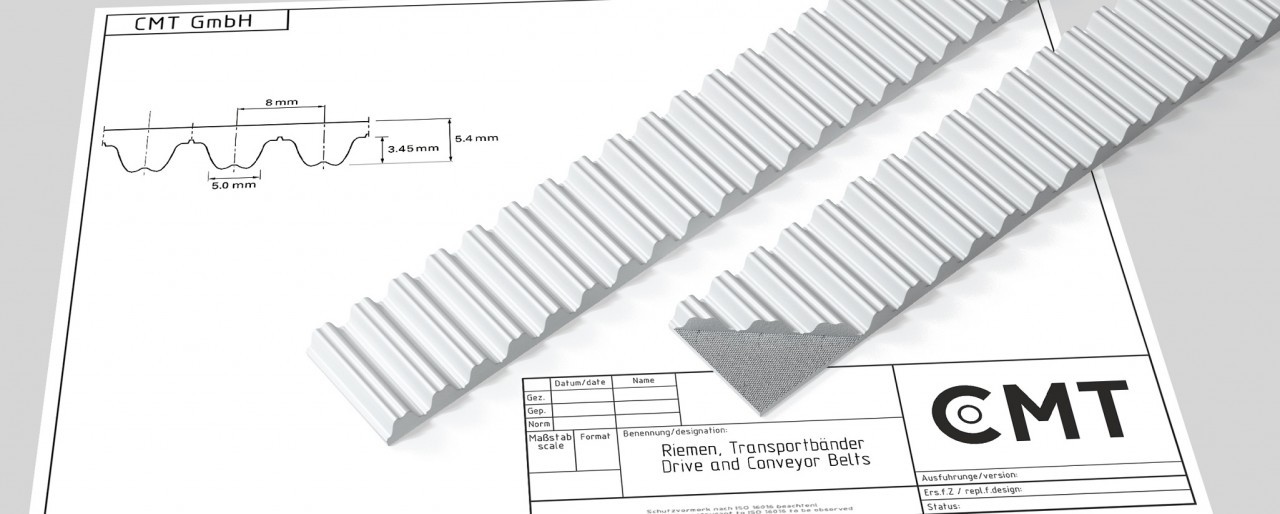

Classic conveyor belts also take on various transport tasks. Depending on the application, light or heavy load transport belts, process belts, food belts, machine belts, endless belts, spindle belts are used.

Conveyor belts usually have several bonded layers of different fabric and polymer materials to ensure the required functions of transport and tensile strength.

Special material properties enable use e.g. at high or low temperatures, under the influence of chemicals, in the food sector, etc.

Conveyor belts can be adapted to the application by attaching different guides, drivers and edge limits.

100-2M-3
100-2M-3
Design: HTD-2M | Width (mm): 3 | Height (mm): 1,36 | Material: neoprene rubber | Tooth height (mm): 0,75 | Pitch (mm): 2 | No. of teeth: 50

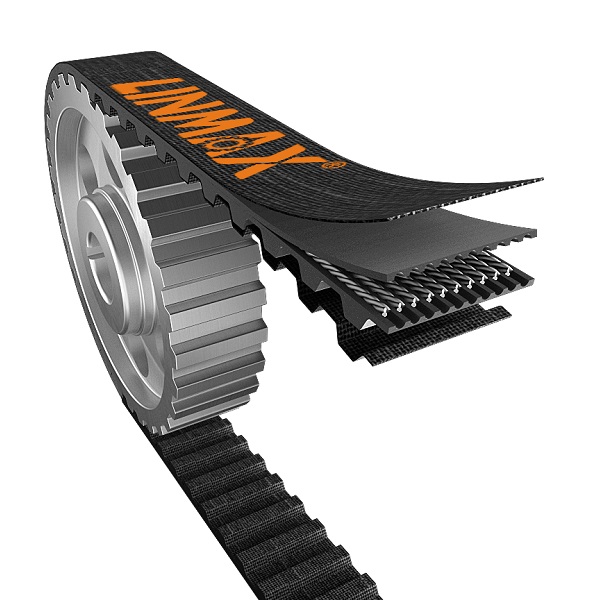

Timing belt, HTD-2M profile - semi-circular tooth shape with 2mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 3mm, Linmax Orange

€1.35*
100-2M-6
100-2M-6
Design: HTD-2M | Width (mm): 6 | Height (mm): 1,36 | Material: neoprene rubber | Tooth height (mm): 0,75 | Pitch (mm): 2 | No. of teeth: 50
Timing belt, HTD-2M profile - semi-circular tooth shape with 2mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 6mm, Linmax Orange

€9.62*
100-2M-9
100-2M-9
Design: HTD-2M | Width (mm): 9 | Height (mm): 1,36 | Material: neoprene rubber | Tooth height (mm): 0,75 | Pitch (mm): 2 | No. of teeth: 50
Timing belt, HTD-2M profile - semi-circular tooth shape with 2mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 9mm, Linmax Orange

€8.26*
1000-5M-15
1000-5M-15
Design: HTD-5M | Width (mm): 15 | Height (mm): 3,8 | Material: neoprene rubber | Tooth height (mm): 2,06 | Pitch (mm): 5 | No. of teeth: 200

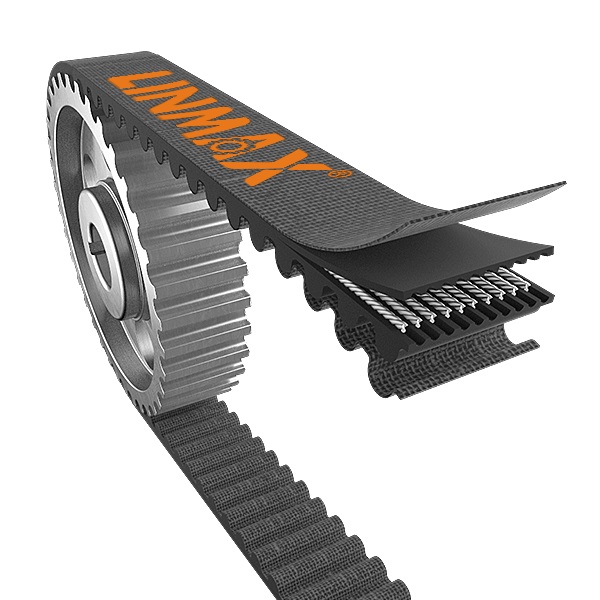

Toothed belt, HTD-5M profile - semi-circular tooth shape with 5mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 15mm, Linmax Orange

€8.08*
1000-5M-25
1000-5M-25
Design: HTD-5M | Width (mm): 25 | Height (mm): 3,8 | Material: neoprene rubber | Tooth height (mm): 2,06 | Pitch (mm): 5 | No. of teeth: 200
Toothed belt, HTD-5M profile - semi-circular tooth shape with 5mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 25mm, Linmax Orange

€12.14*
1000-5M-450
1000-5M-450
Design: HTD-5M | Width (mm): 450 | Height (mm): 3,8 | Material: neoprene rubber | Tooth height (mm): 2,06 | Pitch (mm): 5 | No. of teeth: 200
Toothed belt, HTD-5M profile - semi-circular tooth shape with 5mm pitch, made endless from neoprene with premium fibreglass tension member, black, full sleeve, Linmax Orange

€306.00*
1000-5M-9
1000-5M-9
Design: HTD-5M | Width (mm): 9 | Height (mm): 3,8 | Material: neoprene rubber | Tooth height (mm): 2,06 | Pitch (mm): 5 | No. of teeth: 200
Toothed belt, HTD-5M profile - semi-circular tooth shape with 5mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 9mm, Linmax Orange

€5.42*
1000-8M-20
1000-8M-20
Design: HTD-8M | Width (mm): 20 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 125
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 20mm, Linmax Orange

€11.21*
1000-8M-30
1000-8M-30
Design: HTD-8M | Width (mm): 30 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 125
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 30mm, Linmax Orange

€16.82*
1000-8M-50
1000-8M-50
Design: HTD-8M | Width (mm): 50 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 125
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 50mm, Linmax Orange

€27.81*
1000-8M-85
1000-8M-85
Design: HTD-8M | Width (mm): 85 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 125
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 85mm, Linmax Orange

€47.62*
1002-3M-15
1002-3M-15
Design: HTD-3M | Width (mm): 15 | Height (mm): 2,4 | Material: neoprene rubber | Tooth height (mm): 1,22 | Pitch (mm): 3 | No. of teeth: 334
Toothed belt, HTD-3M profile - semi-circular tooth shape with 3mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 15mm, Linmax Orange

Price on request
1002-3M-6
1002-3M-6
Design: HTD-3M | Width (mm): 6 | Height (mm): 2,4 | Material: neoprene rubber | Tooth height (mm): 1,22 | Pitch (mm): 3 | No. of teeth: 334
Toothed belt, HTD-3M profile - semi-circular tooth shape with 3mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 6mm, Linmax Orange

Price on request
1002-3M-9
1002-3M-9
Design: HTD-3M | Width (mm): 9 | Height (mm): 2,4 | Material: neoprene rubber | Tooth height (mm): 1,22 | Pitch (mm): 3 | No. of teeth: 334
Toothed belt, HTD-3M profile - semi-circular tooth shape with 3mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 9mm, Linmax Orange

Price on request
1008-8M-20
1008-8M-20
Design: HTD-8M | Width (mm): 20 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 126
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 20mm, Linmax Orange

€11.34*
1008-8M-30
1008-8M-30
Design: HTD-8M | Width (mm): 30 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 126
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 30mm, Linmax Orange

€17.05*
1008-8M-50
1008-8M-50
Design: HTD-8M | Width (mm): 50 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 126
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 50mm, Linmax Orange

€28.13*
1008-8M-85
1008-8M-85
Design: HTD-8M | Width (mm): 85 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 126
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 85mm, Linmax Orange

€48.26*
1016-8M-20
1016-8M-20
Design: HTD-8M | Width (mm): 20 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 127
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 20mm, Linmax Orange

€11.34*
1016-8M-30
1016-8M-30
Design: HTD-8M | Width (mm): 30 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 127
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 30mm, Linmax Orange

€17.05*
1016-8M-50
1016-8M-50
Design: HTD-8M | Width (mm): 50 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 127
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 50mm, Linmax Orange

€28.13*
1016-8M-85
1016-8M-85
Design: HTD-8M | Width (mm): 85 | Height (mm): 6 | Material: neoprene rubber | Tooth height (mm): 3,38 | Pitch (mm): 8 | No. of teeth: 127
Toothed belt, HTD-8M profile - semi-circular tooth shape with 8mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 85mm, Linmax Orange

€48.26*
102-2M-3
102-2M-3
Design: HTD-2M | Width (mm): 3 | Height (mm): 1,36 | Material: neoprene rubber | Tooth height (mm): 0,75 | Pitch (mm): 2 | No. of teeth: 51
Timing belt, HTD-2M profile - semi-circular tooth shape with 2mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 3mm, Linmax Orange

€1.38*
102-2M-6
102-2M-6
Design: HTD-2M | Width (mm): 6 | Height (mm): 1,36 | Material: neoprene rubber | Tooth height (mm): 0,75 | Pitch (mm): 2 | No. of teeth: 51
Timing belt, HTD-2M profile - semi-circular tooth shape with 2mm pitch, made endless from neoprene with premium fibreglass tension member, black, cut to width 6mm, Linmax Orange

€14.39*
