BEF1/4-20-501
Price on request
Product number:
1002344
Manufacturer:
Durbal
Weight:
0.03 kg
Product information "BEF1/4-20-501"

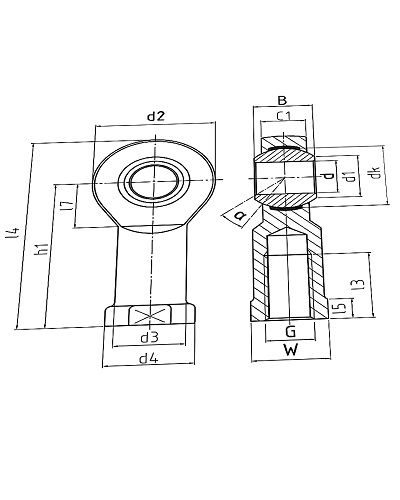

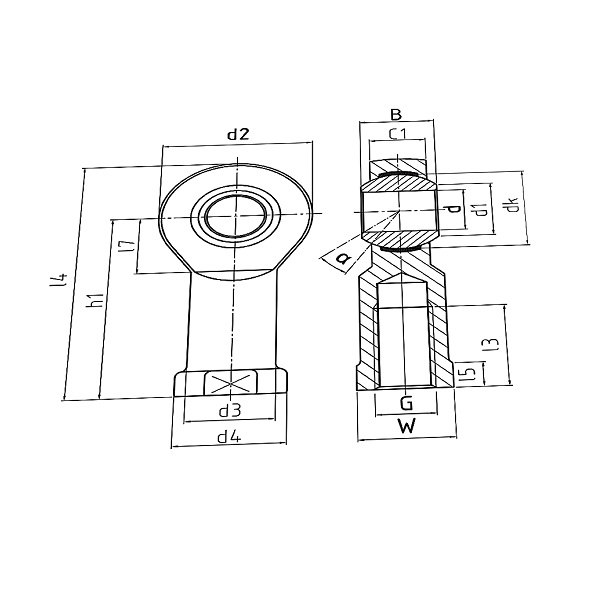

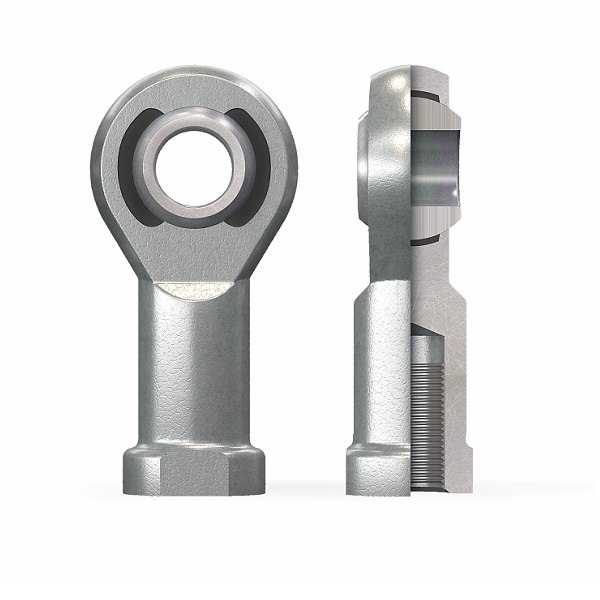

Heavy-duty rod end with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, inch dimensions, female right hand thread, Durbal
| Inner diameter (mm): | .250 |
|---|---|
| Outer diameter (mm): | .750 |
| Width (mm): | .374 |
| Height (mm): | 1.713 |
| Thread type: | female thread, right-hand |
| Thread size: | 1/4-28 UNF |
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
