BEF1/2-20-502
Price on request
Product number:
1002353
Manufacturer:
Durbal
Weight:
0.13 kg
Product information "BEF1/2-20-502"

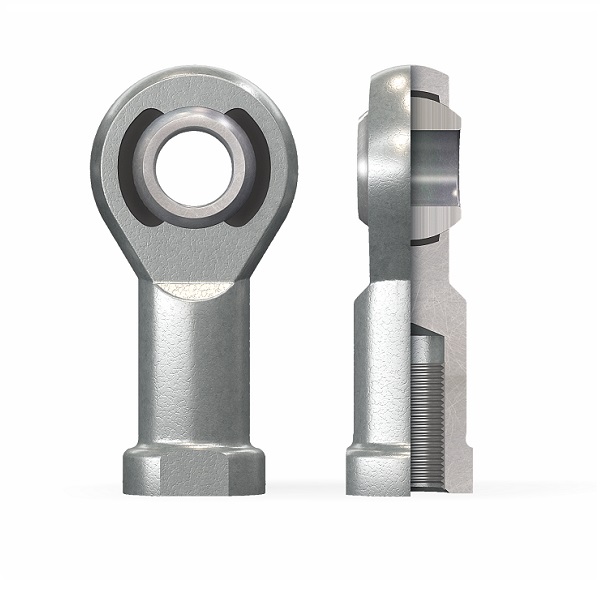

Heavy-duty rod end with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, inch dimensions, female left hand thread, Durbal

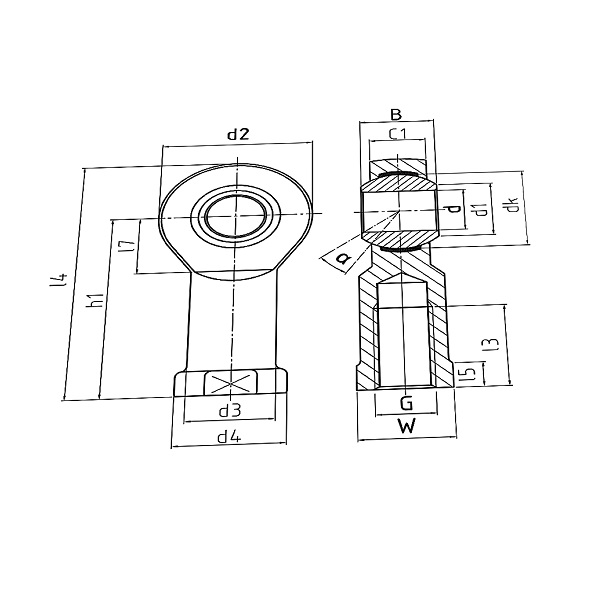

| Inner diameter (mm): | .500 |
|---|---|
| Outer diameter (mm): | 1.311 |
| Width (mm): | .624 |
| Height (mm): | 2.801 |
| Thread type: | female thread, left-hand |
| Thread size: | 1/2-20 UNF |
