BEF1/1-21-502
Price on request
Product number:
1002357
Manufacturer:
Durbal
Weight:
0.66 kg
Product information "BEF1/1-21-502"

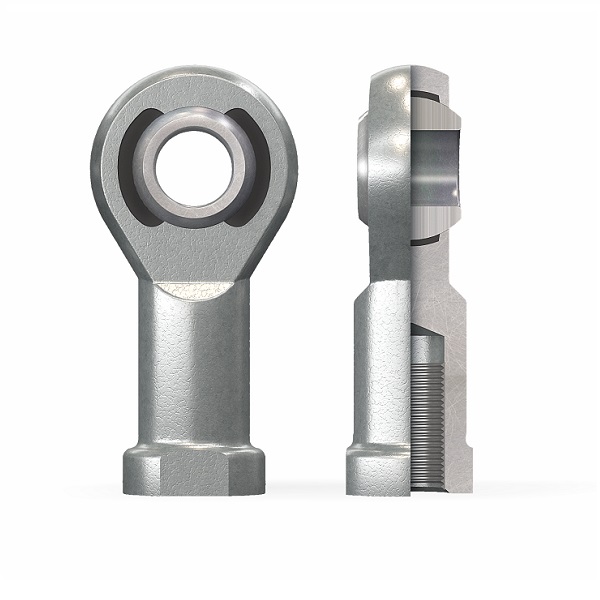

Heavy-duty rod end with integral spherical-plain bearing, polyamid-PTFE-fibreglass-compound race Durbal-Glide, inch dimensions, female left hand thread, Durbal
| Inner diameter (mm): | 1.000 |
|---|---|
| Outer diameter (mm): | 2.362 |
| Width (mm): | 1.220 |
| Height (mm): | 4.901 |
| Thread type: | female thread, left-hand |
| Thread size: | 1/1-14 UNS |
