Nadella's linear guidance systems are designed for durability and reliability.
Nadella's Linear Motion Systems are renowned for their high load capacity and reliability.
Since 1984, Nadella has been known on the world market as a leading manufacturer of linear motion components and systems. These systems are one of the main components of industrial machines and mechanisms and are used wherever high load capacity, high precision and small dimensions are required.
Nadella offers one of the widest ranges of linear motion systems in the industry. The strength of the company's product range is its ability to produce high quality standard and specialist products at very competitive prices. The company's many years of experience in the development, design, manufacture and application of products for industrial machinery are incorporated into every component and system produced.

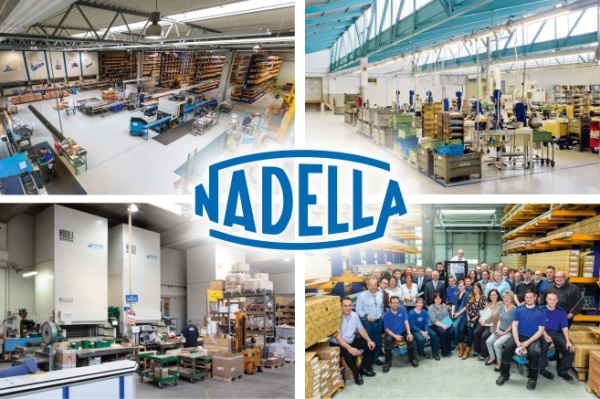

Founded in 1930 in France, the company has rapidly developed from a small bearing manufacturer to a competent system partner in linear motion technology and systems. Wherever innovation, precision and reliability are required, the company's products are in demand, and designers and engineers around the world rely on Nadella. The company's application engineers work closely with customer specialists, actively contributing their knowledge, experience and new technologies. The result is customised solutions that set new standards in the industry.
Nadella specialises in the design, development and manufacture roller linear motion systems, which are divided into two categories:
a heavy duty family of systems
and a medium and light duty family of systems, which are used wherever smooth and quiet linear motion at high speeds is required, even in very aggressive environments

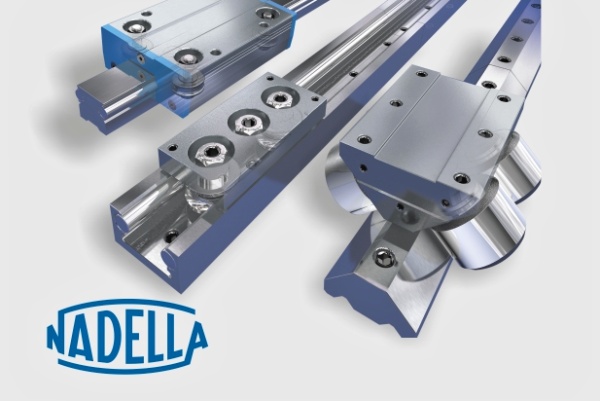

Nadella linear motion systems are made up of individual metal rails in various profiles, up to 6 metres long, which can be cut and drilled for mounting and joined together to suit customer requirements.
The main applications of Nadella linear motion systems are very diverse, but the following typical sectors can be identified:
General and heavy industry
Manipulators and robotics
Transport and process lines
Packaging lines
Processing machines
Woodworking machinery
Assembly lines
Measuring instruments and tools
Medical instruments and equipment
Printing machinery
High Load Capacity Linear Guides

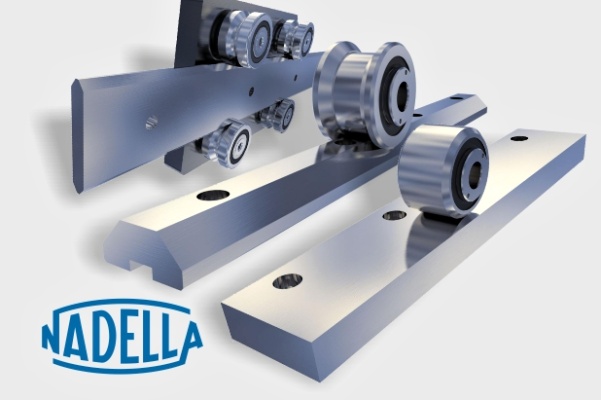

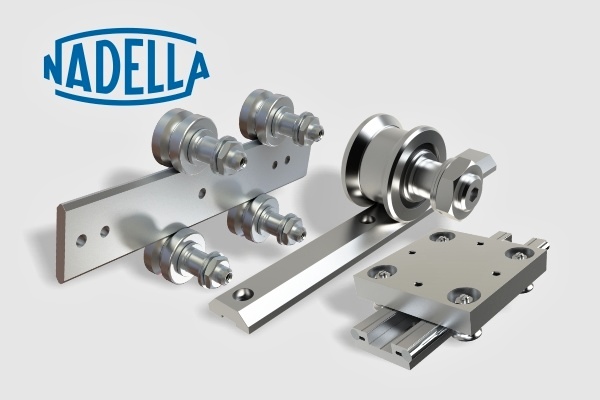

This family of Nadella products consists of low cost, very robust, simple and easy to install steel linear guidance systems that can withstand high loads and the movement of carriages and tables at high speeds, all with the highest reliability even in aggressive environments. Typical applications include metallurgy, rolling mills and sheet metal stamping equipment, transport systems, automated storage and handling systems. Typically, these linear systems consist of high-strength GU (trapezoidal profile) and GP (rectangular profile) guides and FS and FSH (V-shaped profile) guides made of cold-drawn bearing steel with induction-hardened working surfaces, which can be supplied with either sandblasted or ground finishes.

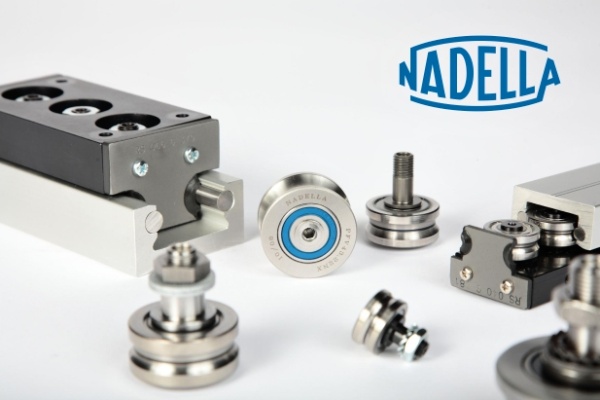

The design of the guide rollers in the carriages of these linear systems is based on ball bearings, needle roller bearings or tapered roller bearings to provide customers with the widest possible range of system load capacities at different price levels. In addition, the guide rollers have a very robust cylindrical or V-shaped concave outer ring with ground raceways.

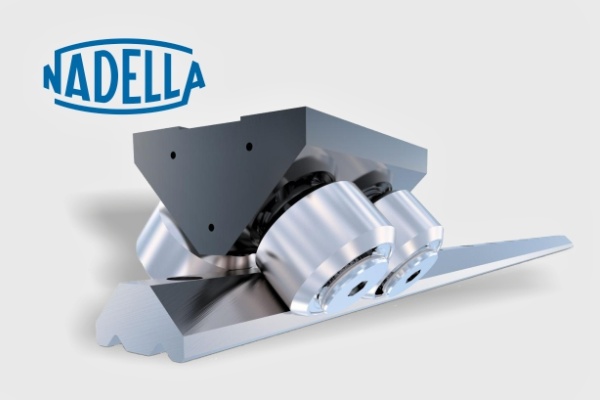

Within the range of carriages for these linear guidance systems, the well-known Rolbloc series deserves special attention due to its high load capacity. Rolbloc carriages are designed for use with GU trapezoidal profile guides and consist of a steel prismatic support structure with one or two pairs of rollers with a cylindrical outer ring mounted on trunnions whose axes are perpendicular to the sides of the prism.
Rolbloc carriages combined with GU trapezoidal guideways, which allow the rollers to roll smoothly, result in well guided systems with high positioning accuracy. This heavy duty design with fast and quiet running of the carriages has enabled a wide range of different applications to be covered. Rolbloc slides are particularly suitable for linear handling of heavy loads with high acceleration, typical of steel making equipment, as well as other heavy industrial applications.
Linear slides for medium and light loads
This Nadella product family is a well-structured system of extruded aluminium linear guides with one or two hardened steel cylindrical bars embedded in them, which act as raceways for the profiled guide rollers of the carriage. The combination of two materials in these guides has enabled the company to take full advantage of their key characteristics and manufacturing technology. On the one hand, it is a lightweight aluminium alloy construction and, on the other, the raceways have increased hardness and a perfect finish on the working surfaces thanks to the integrated steel shafts. These linear guides are designed for use in applications with medium to light loads and aggressive environments such as wood dust, metal swarf, etc.
In order to cover a wide range of applications, Nadella's linear systems have been designed with different geometric guide configurations, such as the "DC" type, which is a complete guide with two laterally integrated steel guide shafts as raceways and a rectangular aluminium body, or the "C" type with a square aluminium body and a single steel guide rod as raceway, which is usually used when required.

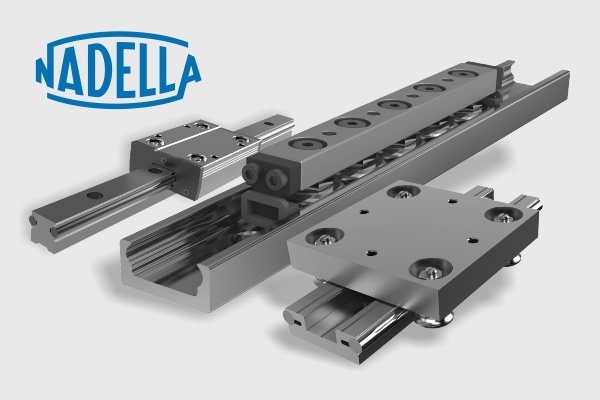

Other components of linear systems in this category include compact railguide type FWS with two integral steel shafts or type FWH with a single rod, complete railguide type LM with two steel rods and U-shaped rail body, compact railguide type FWN with square profile and 2 lateral steel shafts and interchangeable dimensions according to DIN645 standards. The carriages for these systems contain three or more rollers made of hardened and ground steel with an arcuate gothic profile of the outer working surface, with protective washers and seals and filled with long-life grease.
Today, Nadella is a team of competent specialists in the field of linear motion technology, offering a wide range of efficient and unique products for industrial applications, manufactured using the latest technologies, as well as comprehensive customer service.
Innovation, attractive costs and high reliability of the components and systems produced by the company form a solid basis for its dynamic and successful development in the long term, and for more than 80 years Nadella has been one of the industry leaders on the world market.
As a reliable partner for industrial companies, Nadella distinguishes itself from its competitors through its professional approach and state-of-the-art production facilities, as well as the conformity of its products to the highest international quality standards. Today, the company's customers include well-known industrial companies in Germany, Europe, Asia and America in the fields of general mechanical engineering, machine tool construction and process automation.
CMT GmbH is an authorised distributor of the Nadella Group, with the highest possible status - Platinum - and supplies the entire Nadella product range.
Our technical staff provides comprehensive customer support and assistance in selecting the right product.
