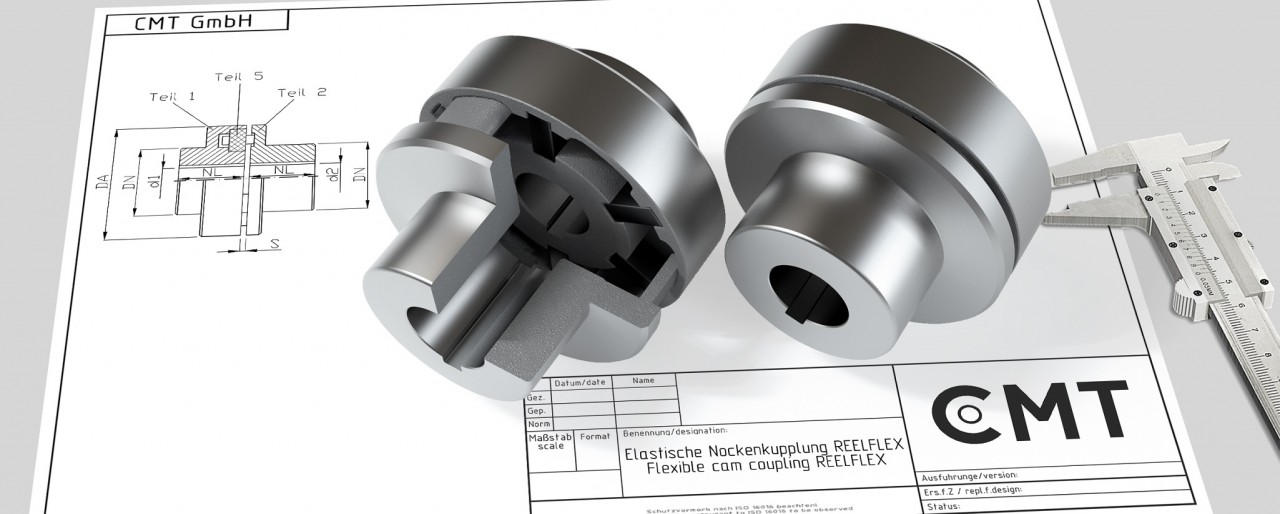

Flexible Cam Couplings
Shaft Couplings
Flexible cam couplings are available in two and three-part versions.The loosening and pulling back of part 3 enables a comfortable change of elastic elements.
Sizes are available for torques from 5 to 250,000 Nm.
Double cam couplings are suitable for torques from 5.7 to 330,000 Nm.
- Coupling packs as elastic elements
- Twist-elastic, vibration-damping
- Maintenance free
- Fail-safe: If the toothed ring fails, the input and output are separated
- Can be used for both directions of rotation, suitable for reversing operation
- Standard connection by tongue and key, also available for taper bushing, clamping set, shrink disk, tapered bore for shrink fit and oil press fit
Materials:
- Cast iron EN-GJL-250 (GG-25)
- Ductile iron EN-GJS 400-600 (GGG 40-60)
