Locking Assemblies

Fixing on Shafts

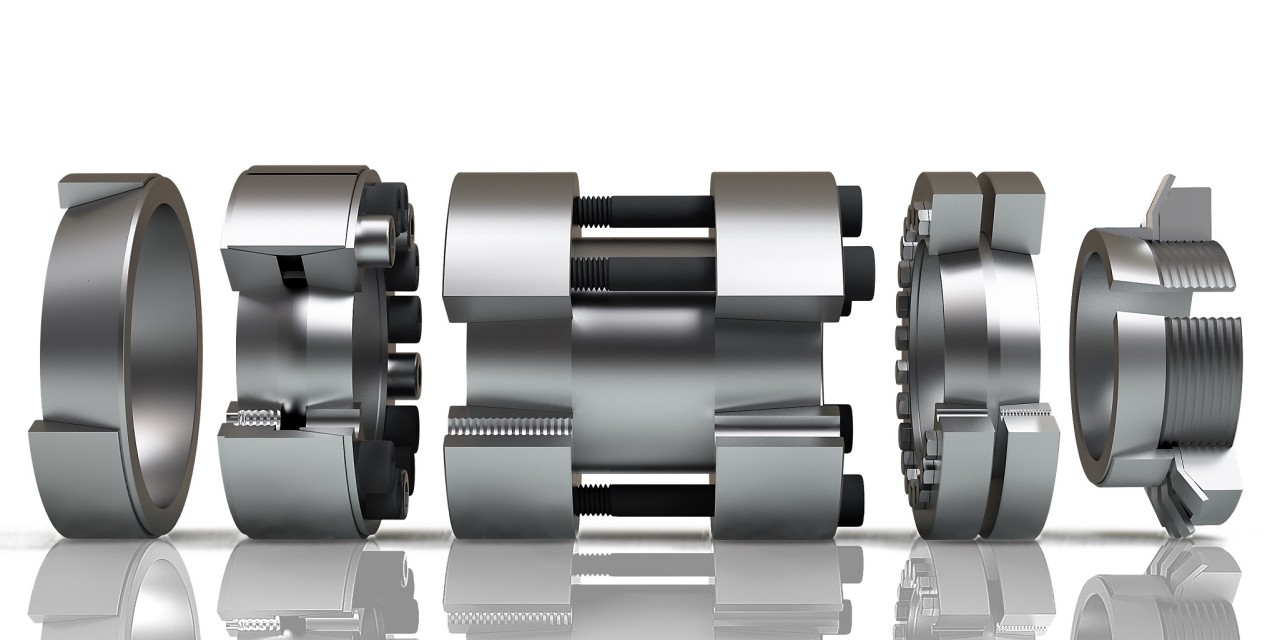

Locking assemblies are rigid, maintenance-free and wear-resistant products for connecting shafts with different types of hubs, such as gears, running wheels, chain sprockets, levers, cam disks, belt and brake disks, couplings and flanges.

These assemblies are manufactured to the highest quality standards, and are designed for simple and quick installation and dismantling, and backlash-free transmission of high torques.

Locking assemblies are an excellent alternative to conventional shrink, wedge, keyway, or polygonal connections and provide exceptional concentricity of the connection and resistance to variable torsion.

These clamping sets are available in various standard designs and sizes, as well as individual special solutions.

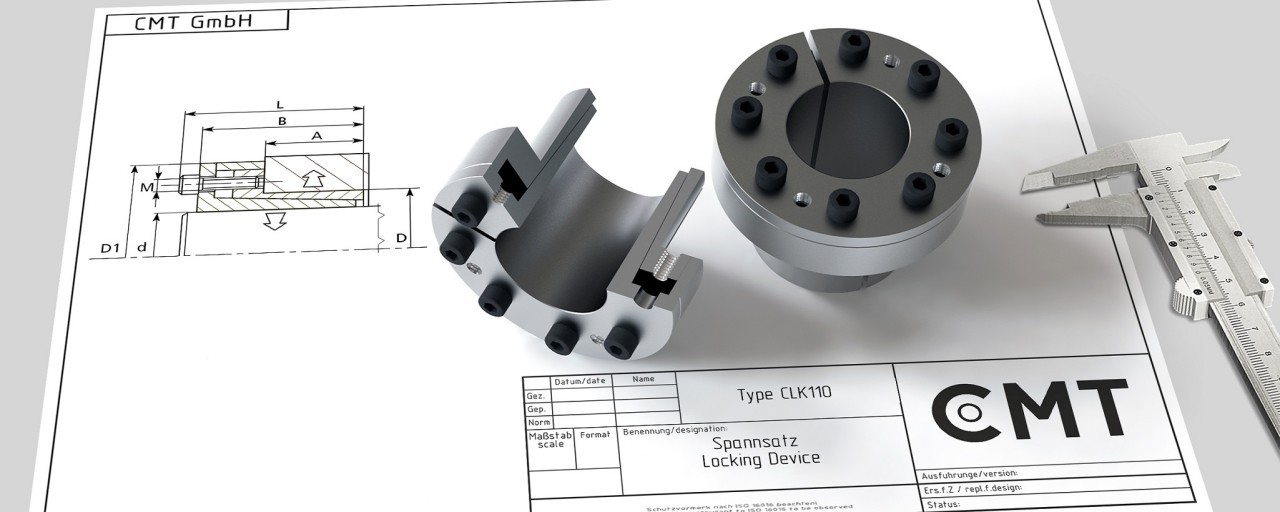

CLK110 100x125
CLK110 100x125
F (kN): 300 | T (Nm): 14600 | Inner diameter: 100 | Outer diameter: 125 | Width: 102 | Thread size: M12 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€166.00*
CLK110 10x16
CLK110 10x16
F (kN): 8 | T (Nm): 42 | Inner diameter: 10 | Outer diameter: 16 | Width: 26 | Thread size: M4 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€21.76*
CLK110 110x140
CLK110 110x140
F (kN): 300 | T (Nm): 16000 | Inner diameter: 110 | Outer diameter: 140 | Width: 128 | Thread size: M12 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€442.00*
CLK110 11x18
CLK110 11x18
F (kN): 9 | T (Nm): 50 | Inner diameter: 11 | Outer diameter: 18 | Width: 26 | Thread size: M4 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€21.76*
CLK110 120x155
CLK110 120x155
F (kN): 300 | T (Nm): 17400 | Inner diameter: 120 | Outer diameter: 155 | Width: 128 | Thread size: M12 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€488.00*
CLK110 12x18
CLK110 12x18
F (kN): 9 | T (Nm): 55 | Inner diameter: 12 | Outer diameter: 18 | Width: 26 | Thread size: M4 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€21.76*
CLK110 130x165
CLK110 130x165
F (kN): 389 | T (Nm): 25000 | Inner diameter: 130 | Outer diameter: 165 | Width: 128 | Thread size: M12 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€540.00*

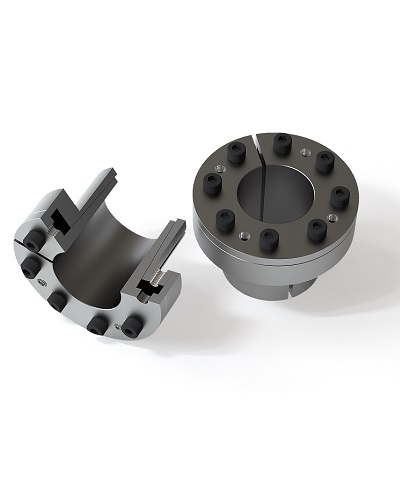

CLK110 14x23
CLK110 14x23
F (kN): 14 | T (Nm): 100 | Inner diameter: 14 | Outer diameter: 23 | Width: 26 | Thread size: M4 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€21.76*
CLK110 15x24
CLK110 15x24
F (kN): 19 | T (Nm): 145 | Inner diameter: 15 | Outer diameter: 24 | Width: 36 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€21.76*
CLK110 16x24
CLK110 16x24
F (kN): 19 | T (Nm): 155 | Inner diameter: 16 | Outer diameter: 24 | Width: 36 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€22.14*
CLK110 17x25
CLK110 17x25
F (kN): 19 | T (Nm): 162 | Inner diameter: 17 | Outer diameter: 25 | Width: 36 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€22.54*
CLK110 18x26
CLK110 18x26
F (kN): 23 | T (Nm): 200 | Inner diameter: 18 | Outer diameter: 26 | Width: 38 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€22.88*
CLK110 19x27
CLK110 19x27
F (kN): 23 | T (Nm): 210 | Inner diameter: 19 | Outer diameter: 27 | Width: 38 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€22.88*
CLK110 20x28
CLK110 20x28
F (kN): 23 | T (Nm): 220 | Inner diameter: 20 | Outer diameter: 28 | Width: 38 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€23.26*
CLK110 22x32
CLK110 22x32
F (kN): 23 | T (Nm): 250 | Inner diameter: 22 | Outer diameter: 32 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€23.58*
CLK110 24x34
CLK110 24x34
F (kN): 23 | T (Nm): 270 | Inner diameter: 24 | Outer diameter: 34 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€24.42*
CLK110 25x34
CLK110 25x34
F (kN): 23 | T (Nm): 280 | Inner diameter: 25 | Outer diameter: 34 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€25.50*
CLK110 28x39
CLK110 28x39
F (kN): 34 | T (Nm): 480 | Inner diameter: 28 | Outer diameter: 39 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€25.88*
CLK110 30x41
CLK110 30x41
F (kN): 34 | T (Nm): 510 | Inner diameter: 30 | Outer diameter: 41 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€27.60*
CLK110 32x43
CLK110 32x43
F (kN): 46 | T (Nm): 730 | Inner diameter: 32 | Outer diameter: 43 | Width: 45 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€28.66*
CLK110 35x47
CLK110 35x47
F (kN): 46 | T (Nm): 800 | Inner diameter: 35 | Outer diameter: 47 | Width: 50 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€30.62*
CLK110 38x50
CLK110 38x50
F (kN): 46 | T (Nm): 860 | Inner diameter: 38 | Outer diameter: 50 | Width: 50 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€33.14*
CLK110 40x53
CLK110 40x53
F (kN): 46 | T (Nm): 900 | Inner diameter: 40 | Outer diameter: 53 | Width: 50 | Thread size: M6 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€35.82*
CLK110 42x55
CLK110 42x55
F (kN): 84 | T (Nm): 1800 | Inner diameter: 42 | Outer diameter: 55 | Width: 57 | Thread size: M8 | Material: Stahl
Internal clamping set, backlash-free shaft-hub connection, self-centering, radial flat design

€38.54*
