Miniature Ball Guidance Systems

Linear Rolling Guidance Systems

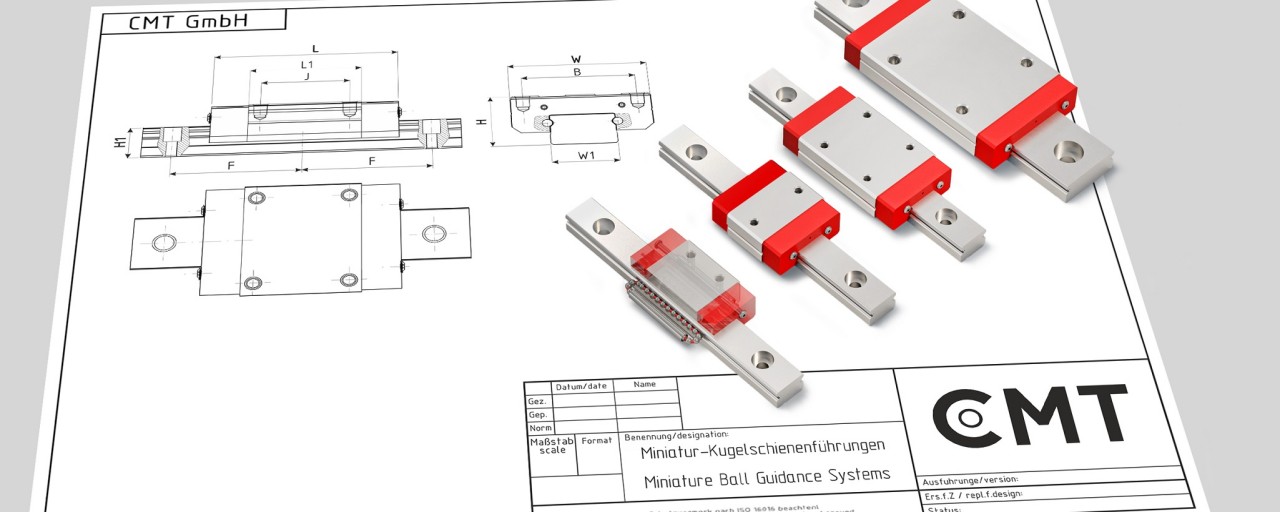

Miniature ball guidance systems are the smallest representatives of linear guides and, due to the necessary compact design, have only one raceway.

Narrow and wide versions are available, with or without a ball chain.

Sold out
LGMC09-BL-BB-NZ1-N
LGMC09-BL-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 20 | Height (mm): 7,8 | Height on rail (mm): 10 | Lenght (mm): 40,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long narrow block design, SNR

€77.00*
Details
Sold out
LGMC09-BN-BB-NZ1-N
LGMC09-BN-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 20 | Height (mm): 7,8 | Height on rail (mm): 10 | Lenght (mm): 30,8 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, narrow block design in standard length, SNR

€66.96*
Details
Sold out
LGMC09-WL-BB-NZ1-N
LGMC09-WL-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 30 | Height (mm): 8,6 | Height on rail (mm): 12 | Lenght (mm): 51 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long wide block design, SNR

€111.42*
Details
Sold out
LGMC09-WN-BB-NZ1-N
LGMC09-WN-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 30 | Height (mm): 8,6 | Height on rail (mm): 12 | Lenght (mm): 39 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, wide block design in standard length, SNR

€96.88*
Details
Sold out
LGMC12-BL-BB-NZ1-N
LGMC12-BL-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 27 | Height (mm): 11 | Height on rail (mm): 13 | Lenght (mm): 47 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long narrow block design, SNR

€432.88*
Details
Sold out
LGMC12-BN-BB-NZ1-N
LGMC12-BN-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 27 | Height (mm): 11 | Height on rail (mm): 13 | Lenght (mm): 34 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, narrow block design in standard length, SNR

€71.52*
Details
Sold out
LGMC12-WL-BB-NZ1-N
LGMC12-WL-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 40 | Height (mm): 10,2 | Height on rail (mm): 14 | Lenght (mm): 59,1 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long wide block design, SNR

€115.92*
Details
Sold out

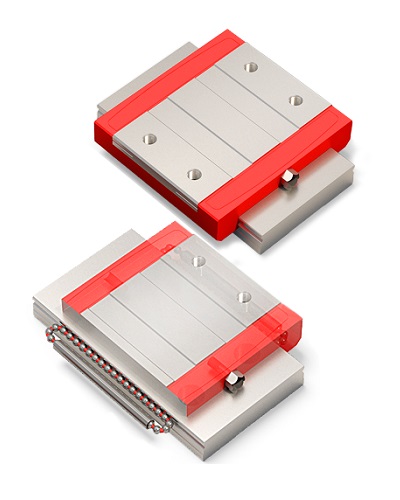

LGMC12-WN-BB-NZ1-N
LGMC12-WN-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 40 | Height (mm): 10,2 | Height on rail (mm): 14 | Lenght (mm): 44,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, wide block design in standard length, SNR

€100.80*
Details
Sold out
LGMC15-BL-BB-NZ1-N
LGMC15-BL-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 32 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 59,8 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long narrow block design, SNR

€88.33*
Details
Sold out
LGMC15-BN-BB-NZ1-N
LGMC15-BN-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 32 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 42 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, narrow block design in standard length, SNR

€76.81*
Details
Sold out
LGMC15-WL-BB-NZ1-N
LGMC15-WL-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 60 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 74,7 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, long wide block design, SNR

€143.00*
Details
Sold out
LGMC15-WN-BB-NZ1-N
LGMC15-WN-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 60 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 55,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: ball chain, caged balls
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, with ball chain, wide block design in standard length, SNR

€124.35*
Details
Sold out
LGMX09-BL-BB-NZ1-N
LGMX09-BL-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 20 | Height (mm): 7,8 | Height on rail (mm): 10 | Lenght (mm): 40,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long narrow block design, SNR

€55.00*
Details
Sold out
LGMX09-BN-BB-NZ1-N
LGMX09-BN-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 20 | Height (mm): 7,8 | Height on rail (mm): 10 | Lenght (mm): 30,8 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, narrow block design in standard length, SNR

€47.83*
Details
Sold out

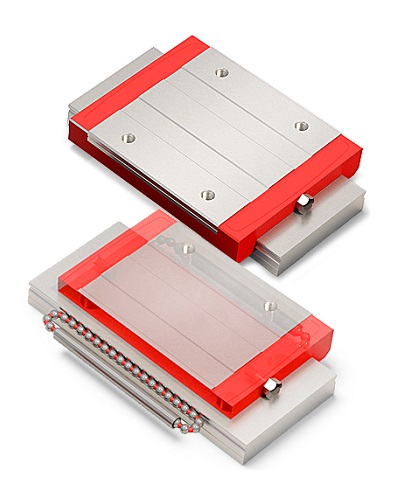

LGMX09-WL-BB-NZ1-N
LGMX09-WL-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 30 | Height (mm): 8,6 | Height on rail (mm): 12 | Lenght (mm): 51 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long wide block design, SNR

€82.50*
Details
Sold out
LGMX09-WN-BB-NZ1-N
LGMX09-WN-BB-NZ1-N
Design: block | Size: 9 | Width (mm): 30 | Height (mm): 8,6 | Height on rail (mm): 12 | Lenght (mm): 39 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, wide block design in standard length, SNR

€71.74*
Details
Sold out
LGMX12-BL-BB-NZ1-N
LGMX12-BL-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 27 | Height (mm): 11 | Height on rail (mm): 13 | Lenght (mm): 47 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long narrow block design, SNR

€60.91*
Details
Sold out
LGMX12-BN-BB-NZ1-N
LGMX12-BN-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 27 | Height (mm): 11 | Height on rail (mm): 13 | Lenght (mm): 34 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, narrow block design in standard length, SNR

€52.97*
Details
Sold out
LGMX12-WL-BB-NZ1-N
LGMX12-WL-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 40 | Height (mm): 10,2 | Height on rail (mm): 14 | Lenght (mm): 59,1 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long wide block design, SNR

€89.17*
Details
Sold out
LGMX12-WN-BB-NZ1-N
LGMX12-WN-BB-NZ1-N
Design: block | Size: 12 | Width (mm): 40 | Height (mm): 10,2 | Height on rail (mm): 14 | Lenght (mm): 44,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, wide block design in standard length, SNR

€77.54*
Details
Sold out
LGMX15-BL-BB-NZ1-N
LGMX15-BL-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 32 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 59,8 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long narrow block design, SNR

€65.42*
Details
Sold out

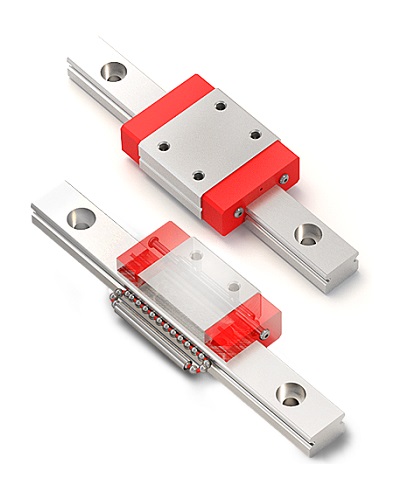

LGMX15-BN-BB-NZ1-N
LGMX15-BN-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 32 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 42 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, narrow block design in standard length, SNR

€56.88*
Details
Sold out
LGMX15-WL-BB-NZ1-N
LGMX15-WL-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 60 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 74,7 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, long wide block design, SNR

€110.00*
Details
Sold out
LGMX15-WN-BB-NZ1-N
LGMX15-WN-BB-NZ1-N
Design: block | Size: 15 | Width (mm): 60 | Height (mm): 12 | Height on rail (mm): 16 | Lenght (mm): 55,5 | Preload: light preload | Precision class: standard | Sealing: standard | Material: corrosion-resistant | Cage: cageless, full complement
Runner block, Miniature ball bearing and guideway assemblies, corrosion-resistant, without ball chain, wide block design in standard length, SNR

€95.65*
