Bearing Units

Housing Bearing Units

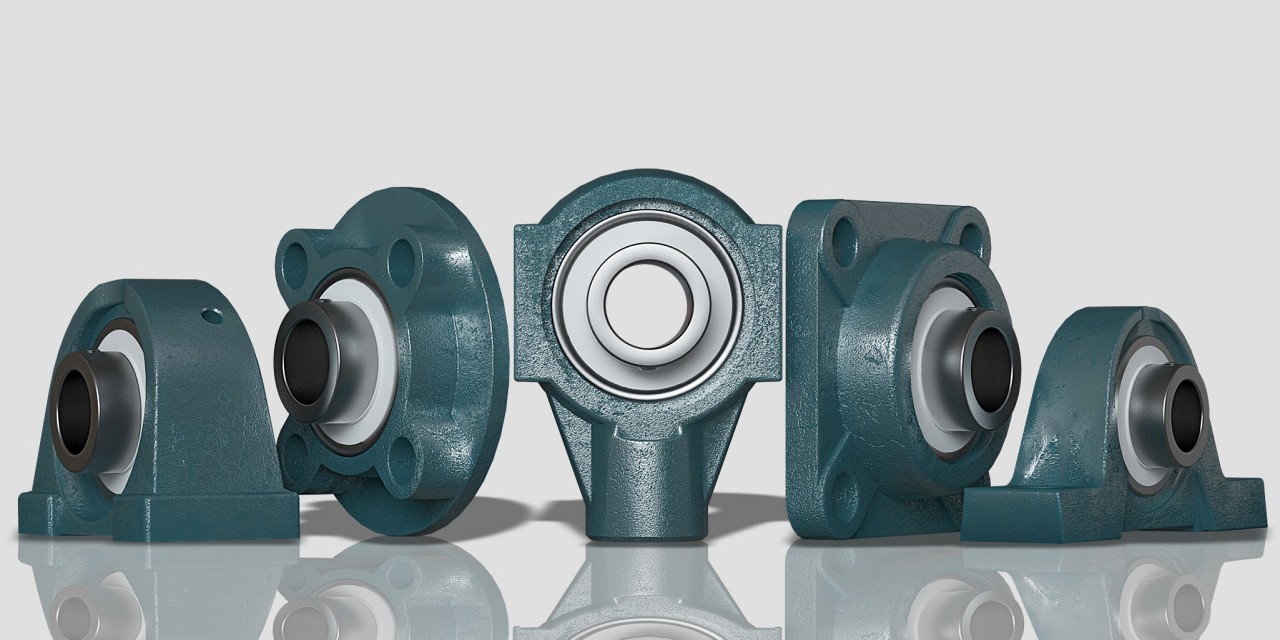

Housing bearing units such as pillow block, flange, clamping, sleeve and hanging bearing housing units result from the composition of various radial insert ball bearings and one-piece housings.

Insert Ball Bearings

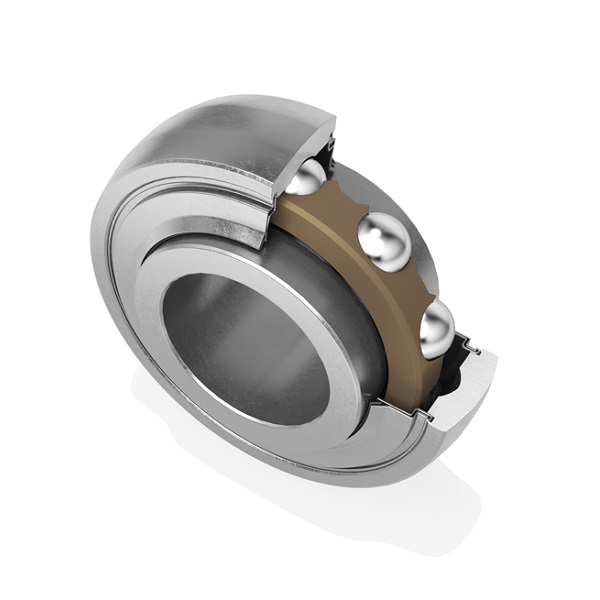

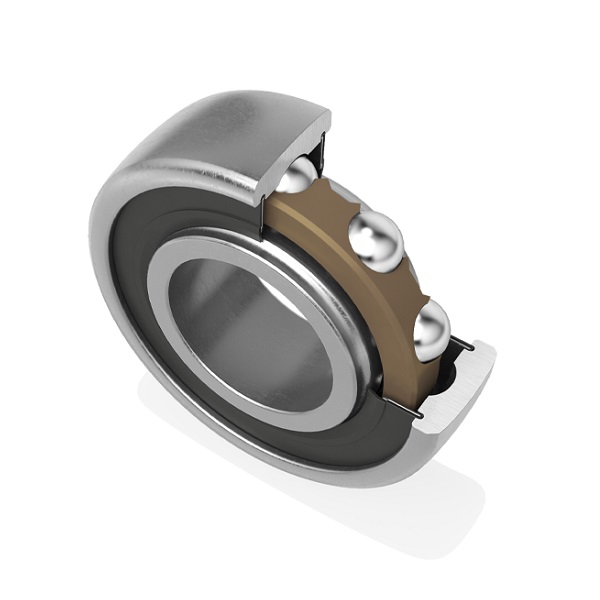

Radial insert ball bearings are deep groove ball bearings, similar to the 62- / 63- series, which are mostly provided with a spherical outer ring, a common inner ring with a locking device and stable seals on both sides. They can be quickly and easily mounted on shafts.

Housings

The housing range is divided into:

Quality cast iron GG20 / GG25 with passivated surfaces
Cold-rolled steel sheet with galvanized surfaces
Stainless steel housing made of solid, rustproof stainless steel with a smooth cast surface
Thermoplastic housing made of solid thermoplastic, which offers protection against bacteria thanks to the resins and smooth surface

The housing units can be completed with open or closed protective caps.

CES205-LT-SS-G101

Material: Stahl

Bearing insert with cylindrical outer ring and eccentric locking collar, SNR

€21.45*

ES201-G2

Inner diameter (mm): 12 | Outer diameter (mm): 40 | Width (mm): 28,6 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€9.11*

Sold out

ES202-G2

Inner diameter (mm): 15 | Outer diameter (mm): 40 | Width (mm): 28,6 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€9.11*

Details

ES203-G2

Inner diameter (mm): 17 | Outer diameter (mm): 40 | Width (mm): 28,6 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€9.11*

Sold out

ES204-G2

Inner diameter (mm): 20 | Outer diameter (mm): 47 | Width (mm): 30,9 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€9.68*

Details

ES205-G2

Inner diameter (mm): 25 | Outer diameter (mm): 52 | Width (mm): 30,9 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€10.51*

Sold out

ES206-G2

Inner diameter (mm): 30 | Outer diameter (mm): 62 | Width (mm): 35,7 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€12.94*

Details

Sold out

ES207-G2

Inner diameter (mm): 35 | Outer diameter (mm): 72 | Width (mm): 38,9 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€15.44*

Details

Sold out

ES208-G2

Inner diameter (mm): 40 | Outer diameter (mm): 80 | Width (mm): 43,7 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€17.98*

Details

ES209-G2

Inner diameter (mm): 45 | Outer diameter (mm): 85 | Width (mm): 43,7 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€23.03*

Sold out

ES210-G2

Inner diameter (mm): 50 | Outer diameter (mm): 90 | Width (mm): 43,7 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€25.20*

Details

Sold out

ES211-G2

Inner diameter (mm): 55 | Outer diameter (mm): 100 | Width (mm): 48,4 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€27.49*

Details

Sold out

ES212-G2

Inner diameter (mm): 60 | Outer diameter (mm): 110 | Width (mm): 49,3 | Sealing: steel shields on both sides | Material: Stahl

Bearing insert ES2.. for bearing units, spherical outer ring, fixing by eccentric locking collar, shielded on both sides, SNR

€37.52*

Details

ESFE201

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€13.89*

ESFE202

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€13.89*

ESFE203

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€13.89*

ESFE204

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€14.72*

ESFE205

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€16.83*

ESFE206

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€20.09*

ESFE207

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€22.67*

ESFE208

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€26.51*

ESFE209

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€33.00*

ESFE210

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€35.52*

ESFE211

Self aligning bearing unit with radial insert ball bearing ES2.. with eccentric locking collar and shielded on both sides, flanged housing FE2.. made of cast, SNR

€46.04*
