BRTF12-00-501
Product number:
1001884
Manufacturer:
Durbal
Weight:
0.11 kg
Product information "BRTF12-00-501"

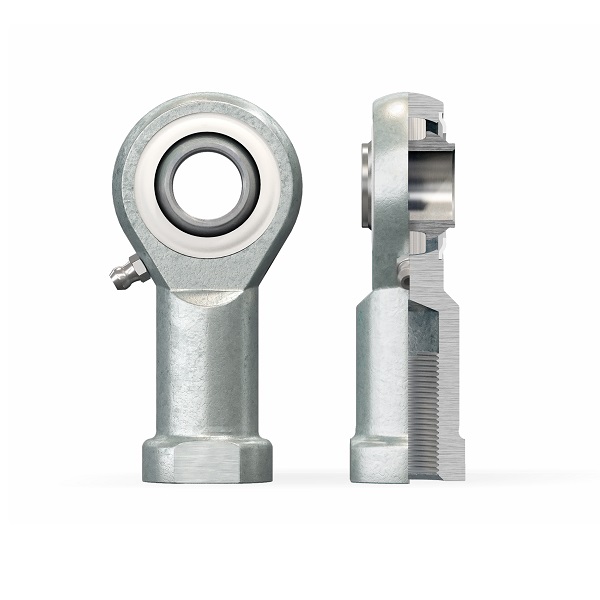

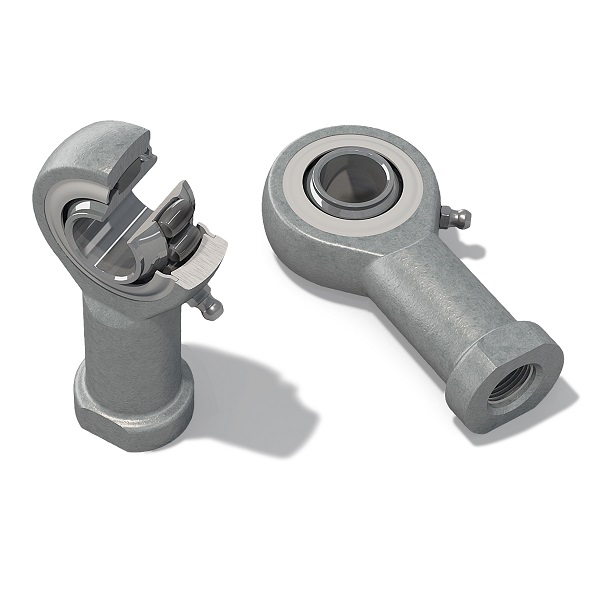

Heavy-duty rod end with integral self-aligning roller bearing, series K, female right hand thread, cage design, Durbal

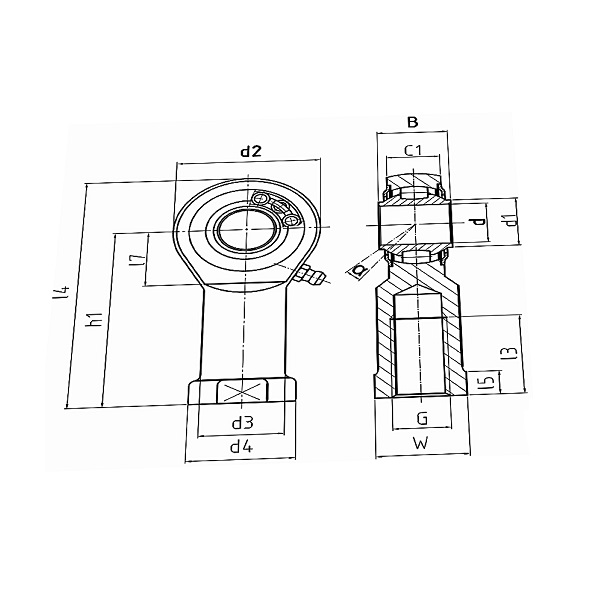

| Inner diameter (mm): | 12 |
|---|---|
| Outer diameter (mm): | 32 |
| Width (mm): | 16 |
| Height (mm): | 66 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, right-hand |
| Thread size: | M12 |
| Cage: | hard fabric, plastic cage |
Alternative articles to "BRTF12-00-501"*
| KI20202-ZZ |
