BRTF10-31-502
Product number:
1001918
Manufacturer:
Durbal
Weight:
0.08 kg
Product information "BRTF10-31-502"

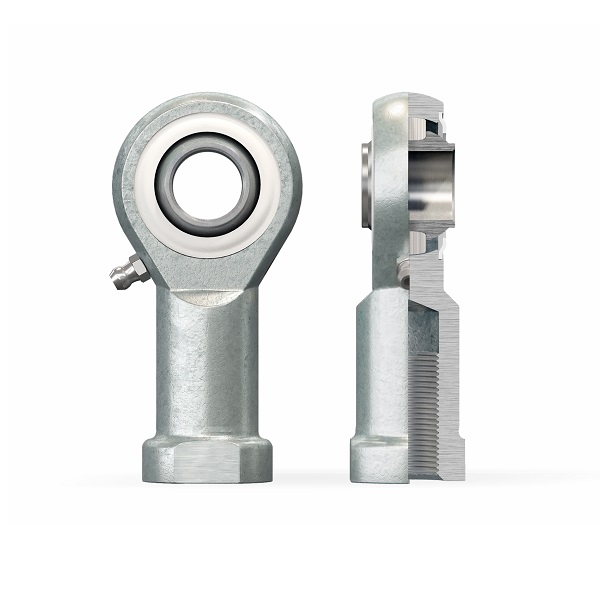

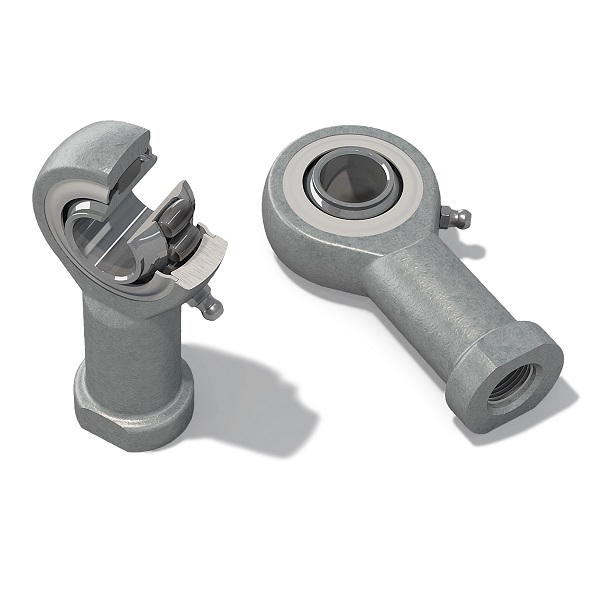

Heavy-duty rod end with integral self-aligning roller bearing, series K, female left hand thread, full complement design, Durbal

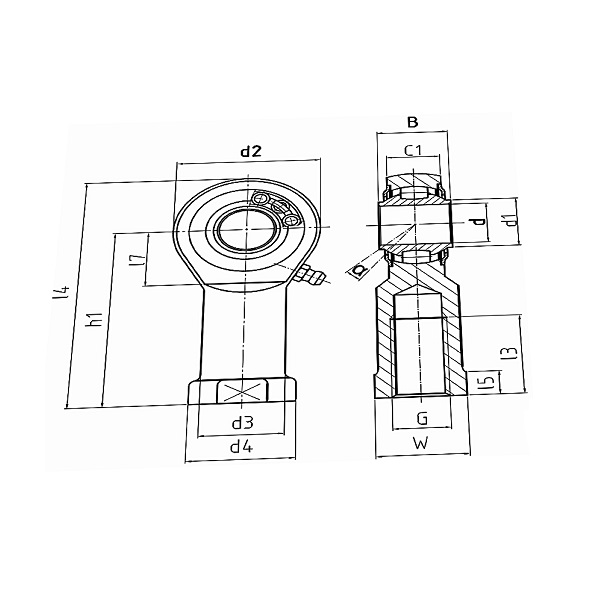

| Inner diameter (mm): | 10 |
|---|---|
| Outer diameter (mm): | 28 |
| Width (mm): | 14 |
| Height (mm): | 57 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, left-hand |
| Thread size: | M10x1,25 |
| Cage: | cageless, full complement |
