BRF10-00-502
Product number:
1002060
Manufacturer:
Durbal
Weight:
0.07 kg
Product information "BRF10-00-502"

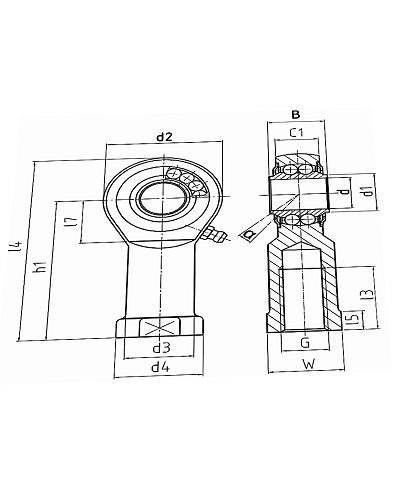

Heavy-duty rod end with integral self-aligning ball bearing, series K, female left hand thread, Durbal
| Inner diameter (mm): | 10 |
|---|---|
| Outer diameter (mm): | 28 |
| Width (mm): | 14 |
| Height (mm): | 57 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, left-hand |
| Thread size: | M10 |
| Cage: | cageless, full complement |
Alternative articles to "BRF10-00-502"*
| KUIL10-ZZ |
| 63246000 |
* The products mentioned are merely non-binding suggestions. They may be direct or technical alternatives. Products with similar dimensions may differ in various aspects such as functionality, quality and technical details. These differences and suitability must be checked by the customer using the manufacturer's catalog before ordering.
