BRF1/4-00-501
Price on request
Product number:
1002028
Manufacturer:
Durbal
Weight:
0.03 kg
Product information "BRF1/4-00-501"

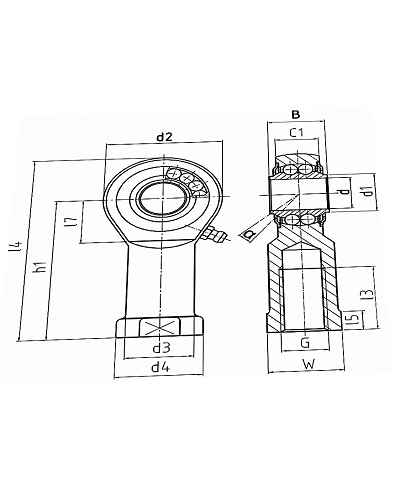

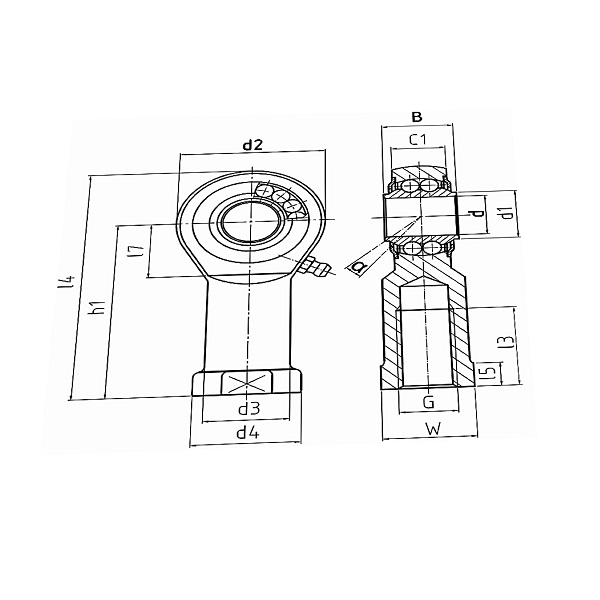

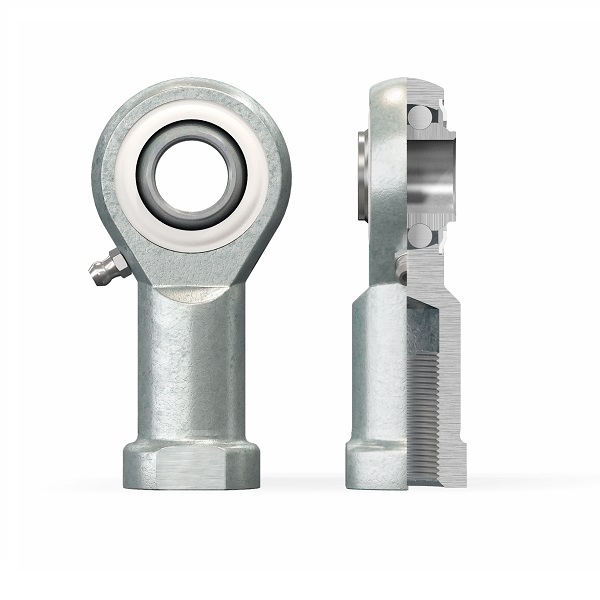

Heavy-duty rod end with integral self-aligning ball bearing, inch dimensions, female right hand thread, Durbal
| Inner diameter (mm): | .250 |
|---|---|
| Outer diameter (mm): | .787 |
| Width (mm): | .354 |
| Height (mm): | 1.593 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, right-hand |
| Thread size: | 1/4-28 UNF |
| Cage: | cageless, full complement |
