BRF1/2-00-502
Price on request
Product number:
1002037
Manufacturer:
Durbal
Weight:
0.13 kg
Product information "BRF1/2-00-502"

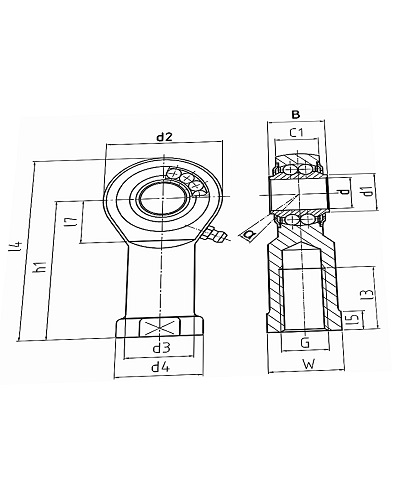

Heavy-duty rod end with integral self-aligning ball bearing, inch dimensions, female left hand thread, Durbal
| Inner diameter (mm): | .500 |
|---|---|
| Outer diameter (mm): | 1.311 |
| Width (mm): | .624 |
| Height (mm): | 2.801 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, left-hand |
| Thread size: | 1/2-20 UNF |
| Cage: | cageless, full complement |
We update the catalogues and catalogue extracts regularly, but we cannot guarantee that the latest version is available on our website. The latest catalogues can be found on the manufacturers' websites. You will often be able to view the items you are looking for individually with all the technical details, which is also our recommendation.
