BRF1/1-00-501
Price on request
Product number:
1002033
Manufacturer:
Durbal
Weight:
0.57 kg
Product information "BRF1/1-00-501"

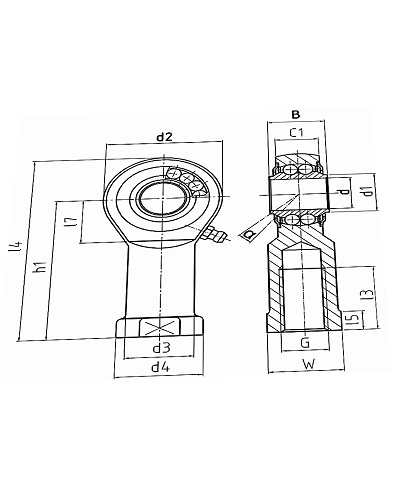

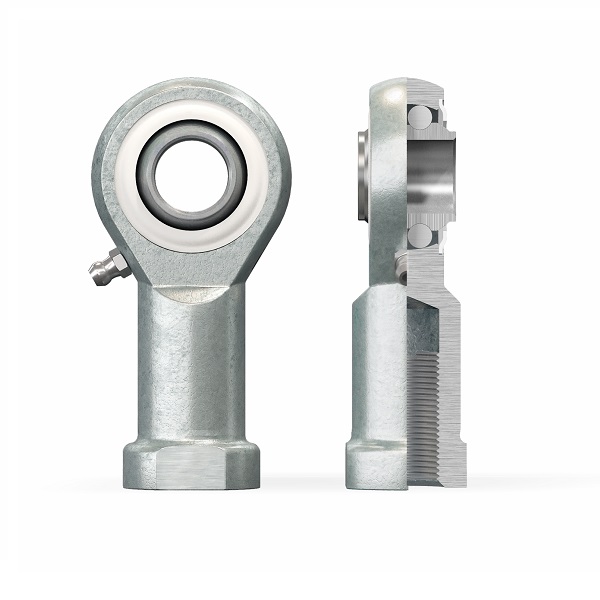

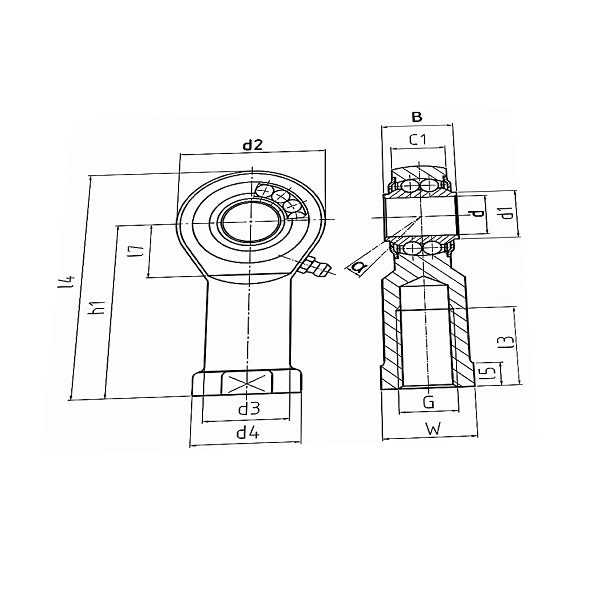

Heavy-duty rod end with integral self-aligning ball bearing, inch dimensions, female right hand thread, Durbal
| Inner diameter (mm): | 1.000 |
|---|---|
| Outer diameter (mm): | 2.519 |
| Width (mm): | 1.220 |
| Height (mm): | 4.980 |
| Sealing: | steel shields on both sides |
| Thread type: | female thread, right-hand |
| Thread size: | 1/1-12 UNF |
| Cage: | cageless, full complement |
